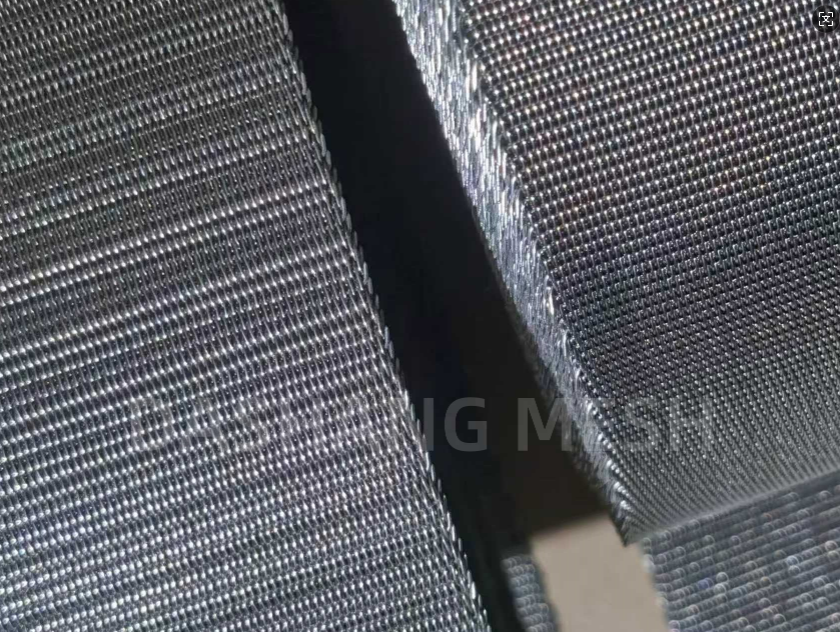

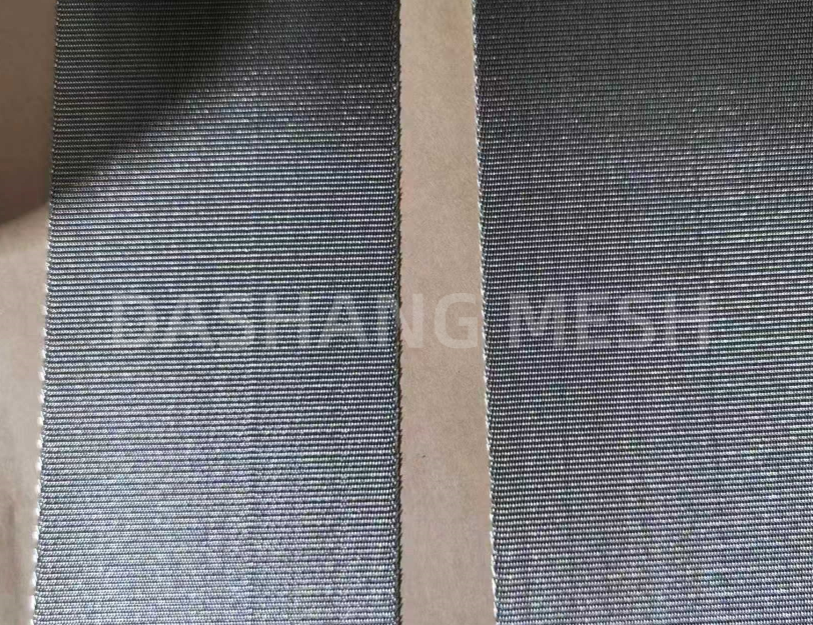

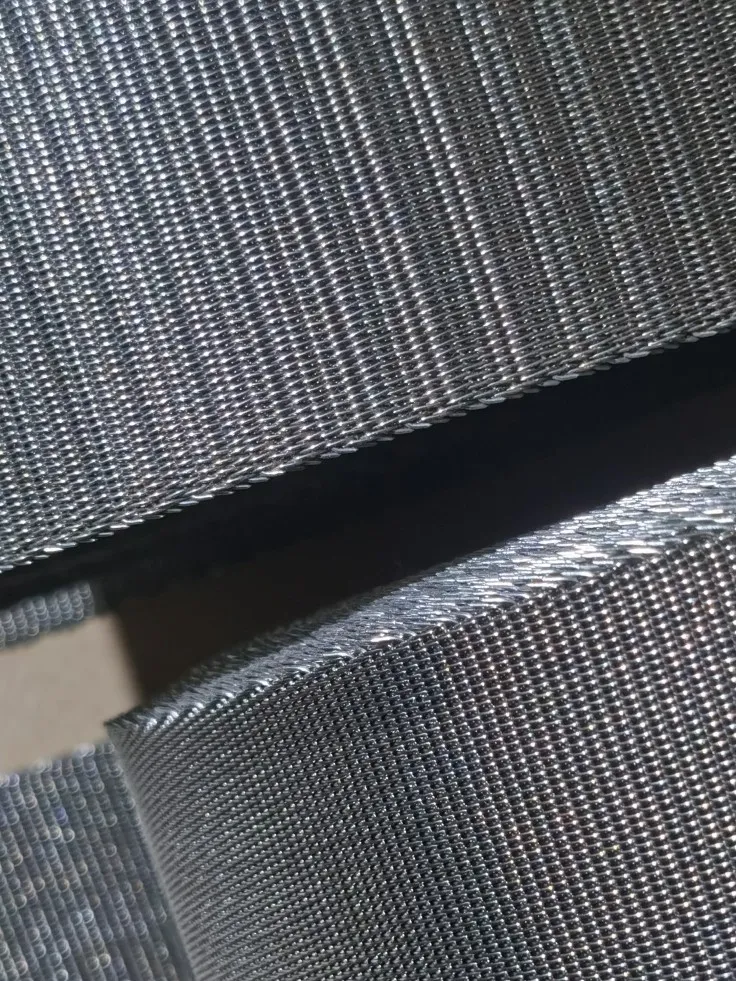

Reversed--Twill-Weave Mesh Belts

Dashang Wire Mesh manufactures and supplies reversed-weave mesh belts suitable for continuous belt-driven screen changers. Reverse Dutch twill weave mesh is a high-performance, fine filtration wire mesh that combines Dutch and twill weaving techniques, primarily used in applications requiring high mechanical strength and precise micron-grade filtering.

PRODUCT DESCRIPTION

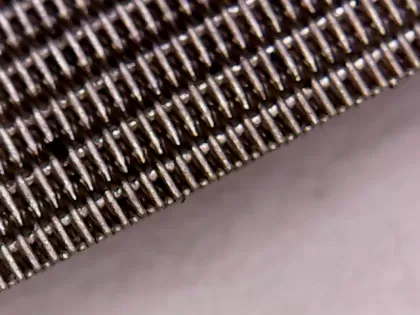

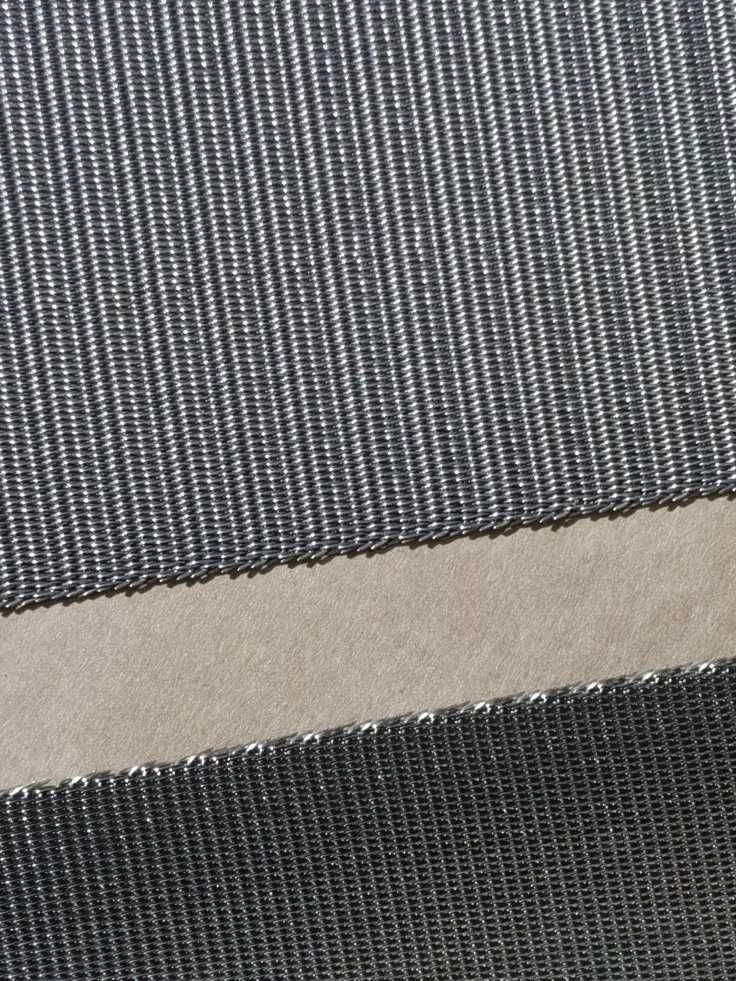

Unlike standard Dutch weaves, reverse Dutch has thicker weft (shute) wires and finer warp wires. The twill pattern means each weft wire passes over and under two warp wires, creating diagonal lines. This reduces the physical stress and deformation of the warp wires, resulting in a very stable and strong structure.The mesh has a smooth surface and uniform structure. It possesses high tensile strength and tolerance against breaking or rupturing, making it suitable for applications with high mechanical stress and pressure.The tightly woven fine wires create precisely defined, tapered or wedged pore openings, which provides for excellent, fine, and high-precision filtration, typically in the micron range.

It is typically made from stainless steel (e.g., 304, 304L, 316, 316L) or brass wire, which provides excellent resistance to acid, alkali, rust, and corrosion.

The strength and fine filtration capabilities of reverse Dutch twill weave mesh make it ideal for demanding industrial filtration processes.

Polymer and Plastic Extrusion: A primary application is as a continuous filter screen in polymer filtration and automatic screen changers used in the plastic extrusion industry.

Industrial Filtration: It is widely used in pressure filters, vacuum filters, and filter elements for liquid, gas, and slurry separation in various industries.

Aerospace and Petrochemical: Its high-performance properties make it suitable for critical applications in the aerospace, petroleum, and chemical fiber industries.

Food and Pharmaceutical: The material's resistance to corrosion and chemical stability makes it applicable for use in the food and pharmacy fields.

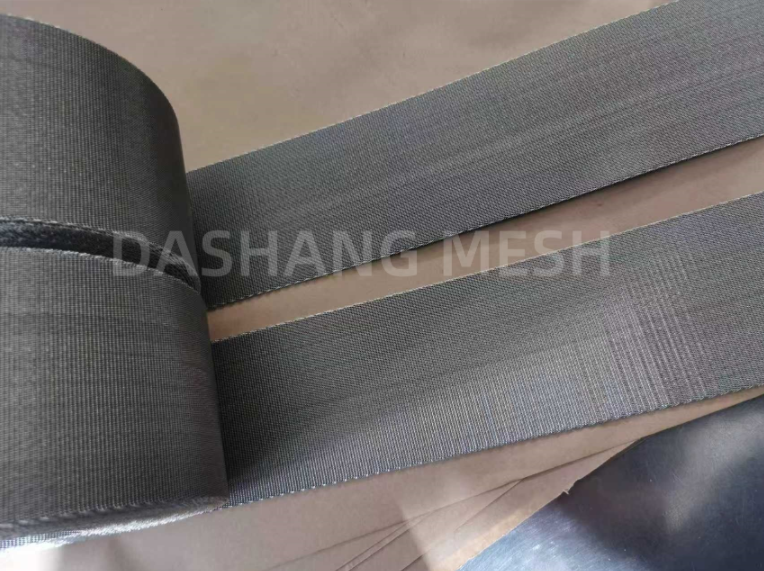

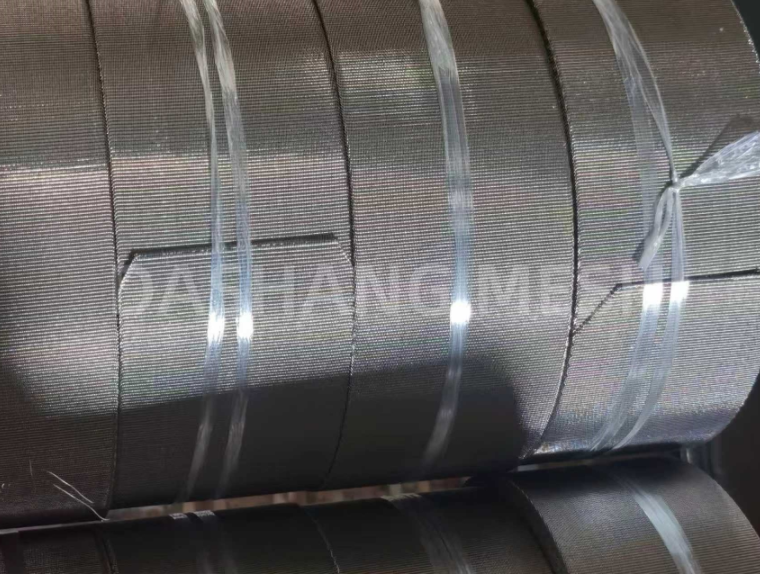

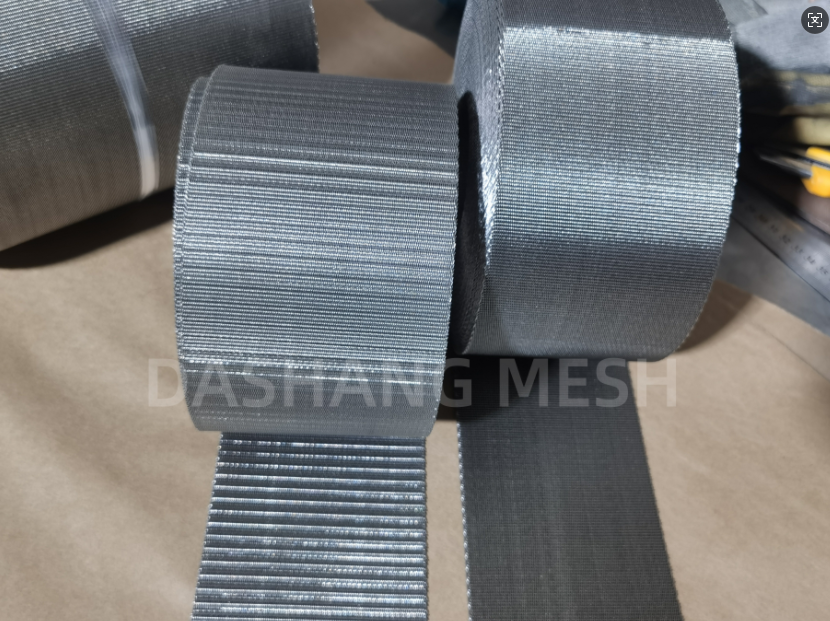

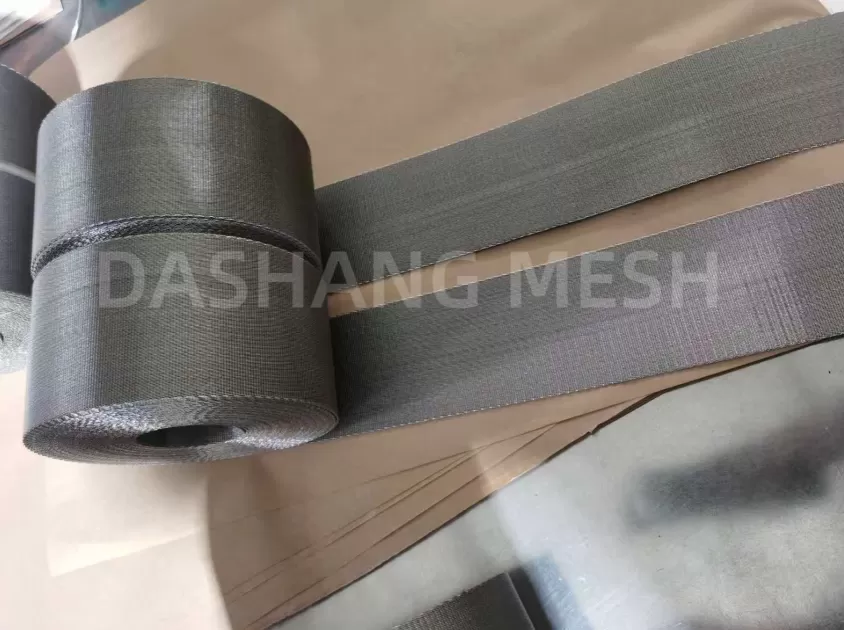

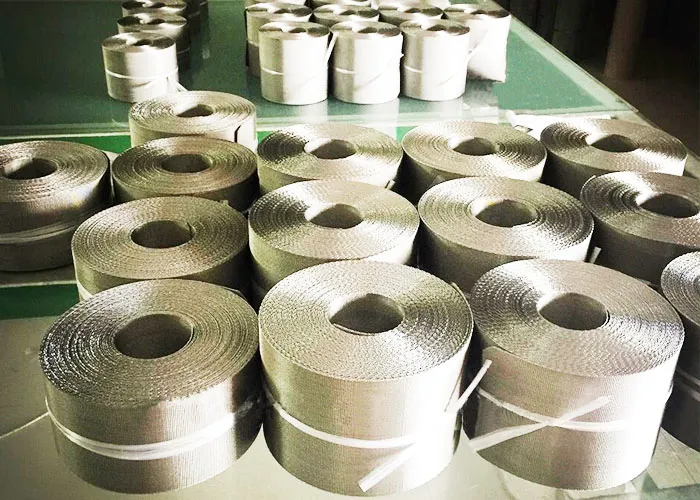

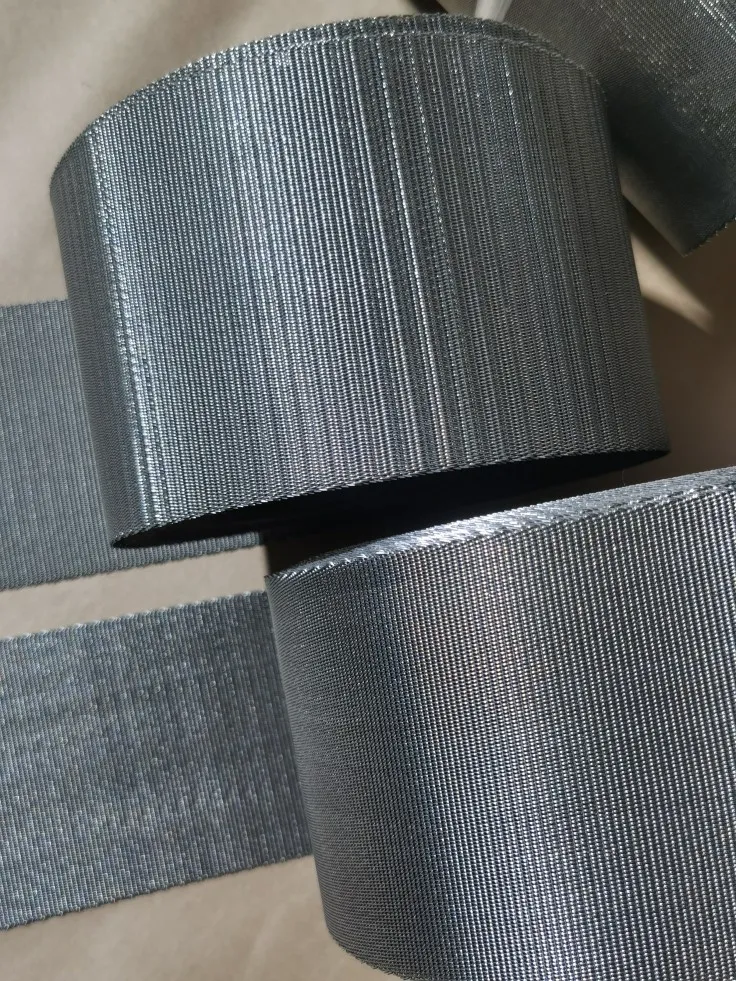

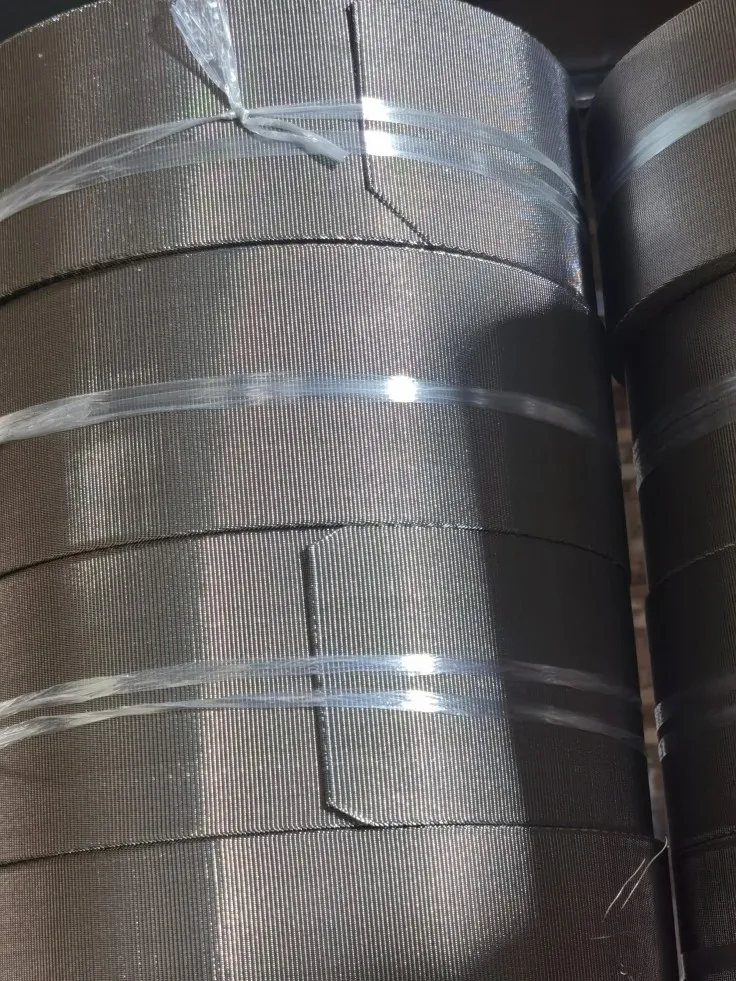

Dashang Wire Mesh offers the mesh in rolls, with standard lengths of 10 meters or 20 meters. One roll of filter mesh is equivalent to the supply for hundreds of traditional screen changers, meeting the needs of continuous operation for several months, ensuring continuous production and reducing downtime.

The filter mesh used in these screen changers is made of high-strength stainless steel wire, woven with a reverse Dutch twill weave. A consistently stable supply of filter material not only protects your expensive production equipment and reduces maintenance costs, but also improves the yield and quality of the final product.The filter mesh is compatible with all similarly designed screen changers and non-standard widths and lengths can be provided upon request.

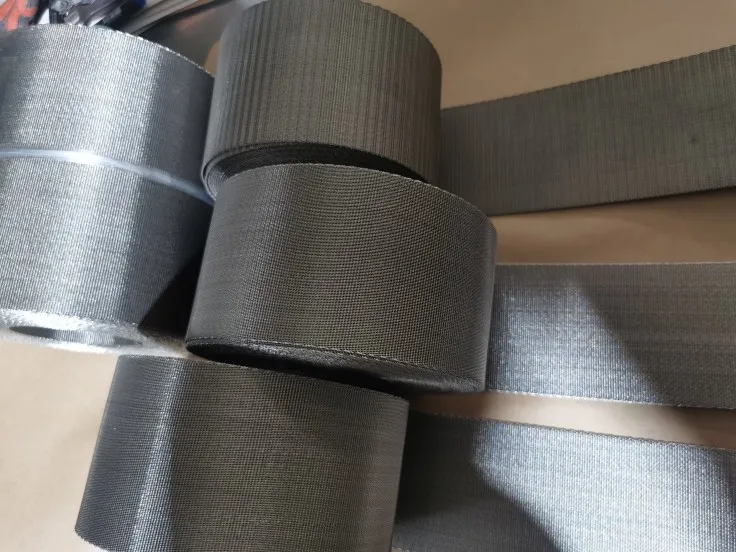

Reversed--Twill-Weave Mesh Belts

Specific specifications vary by product. Here are examples of common specifications by Dashang Wire Mesh stock:

Mesh No.	Wire Diameter	Absolute Filtration	Nominal Filtration	Weave type
Mesh No.	mm	μm	μm
48×10	0.5×0.5	350-450	400	Herringbone
72×15	0.45×0.55	250-350	300	Reverse Twill
120x14	0.35x0.45			Reverse Twill
132×17	0.32×0.45	210-260	250	Reverse Twill
152×24	0.27×0.40	115-130	165	Reverse Twill
200x40	0.17x0.27			Reverse Twill
260×40	0.15×0.27	80-95	125	Reverse Twill
325×40	0.13×0.25	45-75	55	Reverse Twill
