Stainless Steel Square Wire Mesh

Selecting and ordering the right square-mesh woven wire cloth

Square woven wire mesh
Square-mesh
Woven Wire Mesh
Stainless steel mesh

Stainless steel square mesh specification

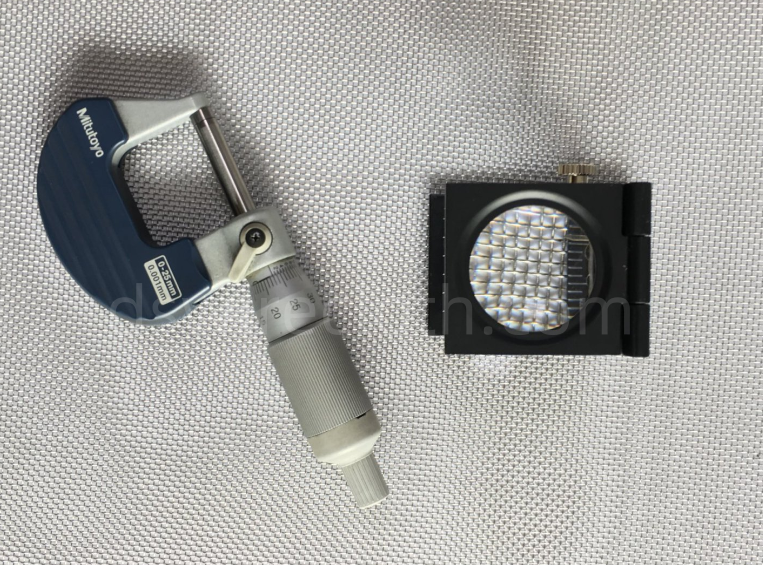

Wire diameter: The diameter of the stainless steel wire (usually in mm or inch). Directly affects the strength, porosity and weight of the mesh.

Aperture/mesh size: The mesh spacing between two adjacent warp or weft wires (usually in mm or inch). This is a key indicator for selecting a screen for filtration or grading.

Mesh number: The number of mesh holes per inch (or centimeter) in length. The higher the mesh number, the smaller the mesh hole and the higher the filtration accuracy. The mesh number is closely related to the aperture and wire diameter.

Porosity: The percentage of the total mesh area to the entire mesh area. Affects flow, air permeability and light transmittance.

Width: The width of the mesh (usually in mm or m).

Length: The length of the mesh (usually in m).

Stainless steel square mesh is the most widely used and common woven mesh. The most common and economic weave type is plain weave and twill weave.

Stainless steel square mesh

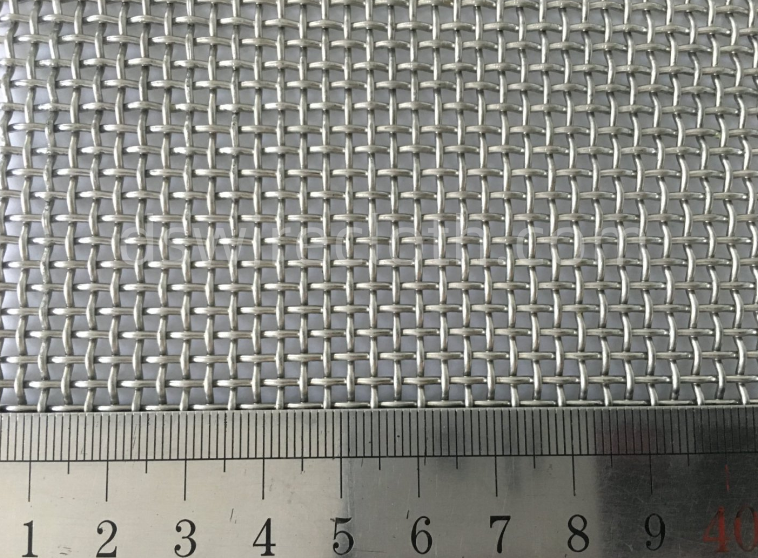

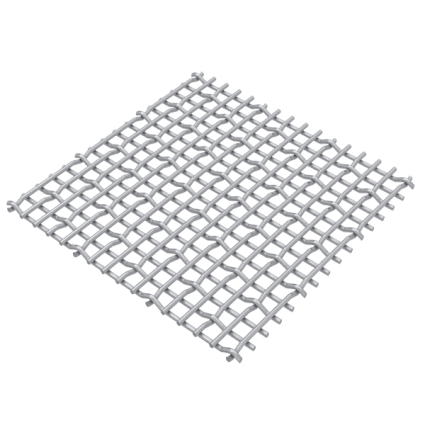

Plain weave (1/1) is woven by alternating the weft wire over and under the warp wire. It is the most basic, simplest and most widely used weaving method. It ensures the stability of the stainless steel mesh structure, the square and precise cut of the mesh holes, and has a core advantage for industrial screening that requires strict filtering accuracy or classification accuracy.

Twill weave (2/2) is that each weft wire passes alternately over and under 2 warp wires, staggered on successive warps. Its structural stability and precision are slightly inferior to plain weave, but it has a high open porosity, good flexibility and strong coarse wire and large hole weaving ability. Stainless steel twill weave has unique value in solving large flow requirements and heavy large aperture fields.

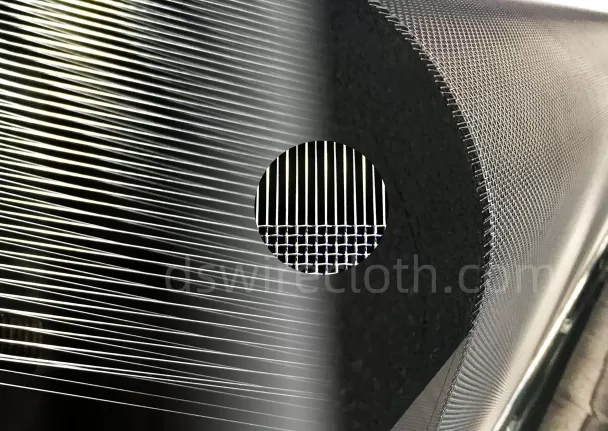

Except plain weave (1/1) and twill weave (2/2), Dashang Wire Mesh also could provide special weave type such as 3 heddles weave (1/2) and 5 heddle weave (1/4). The wires continuously cross over multiple cross wires on the surface, making the mesh surface extremely smooth and flat, with a low friction coefficient. Because there are few interlacing points, it has good flexibility, is easy to bend, and has excellent openness and flowability. It is often used as a support net for filter cloth or filter membrane to provide flat support and reduce membrane wear. It is also commonly used in papermaking forming nets and dry nets, which require smoothness, good dehydration, and reduced pulp fiber retention.

As a high-quality filter material, stainless steel mesh has incomparable advantages:

• Strong corrosion resistance: It can be used for a long time in corrosive environments such as acid, alkali, and salt, and is not easy to rust and corrode. It is suitable for chemical, petroleum, pharmaceutical and other industries.

• High strength: Stainless steel wire has high strength and toughness, which makes the stainless steel square hole mesh have good tensile, compressive and impact resistance, and can withstand large external forces.

• Good filtration performance: The mesh is uniform and the filtration accuracy is high. It can effectively filter out impurities, particles and other substances in liquids or gases, ensuring the purity and quality of the filtered medium.

• Good high temperature resistance: It can still maintain good performance in high temperature environments, is not easy to deform and damage, and can be used for filtering high-temperature gases or liquids.

• Easy to clean and maintain: The surface is smooth, impurities are not easy to adhere, it is easy to clean, and it can be reused, which reduces the cost of use.

Stainless steel square woven mesh has a very wide range of applications:

Precision filtration grade (20μm – 100μm, 150–500 mesh): Suitable for catalyst recovery, polymer melt filtration, fine separation in the pharmaceutical industry, and filtration of electronic-grade chemicals.

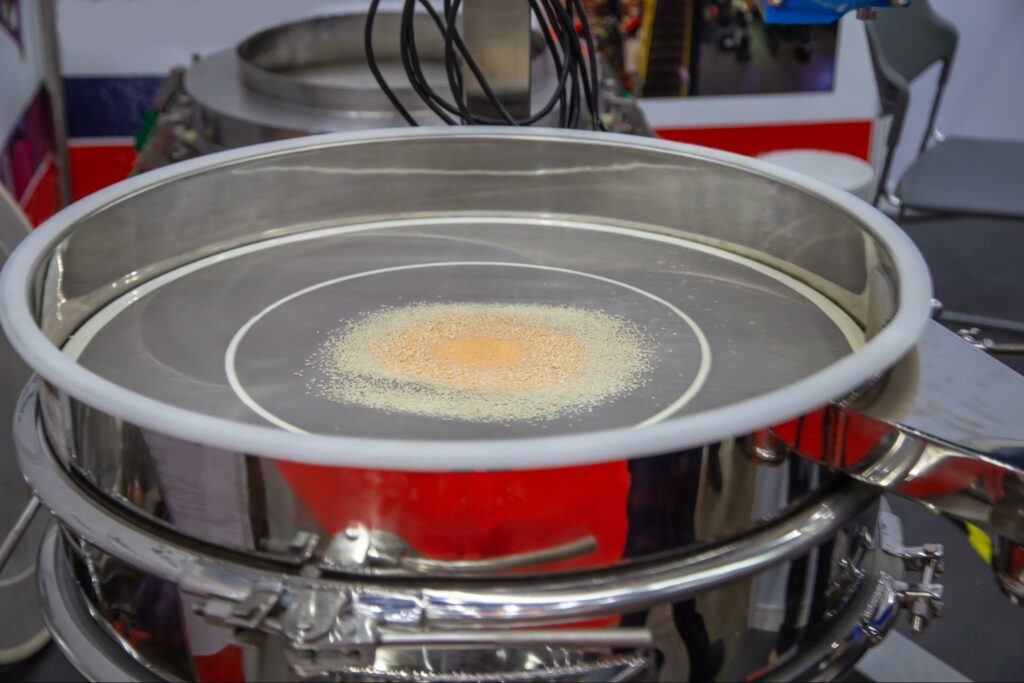

Medium-precision screening grade (100μm – 1mm, 16–150 mesh): Suitable for classification of chemical powders, screening of food ingredients (flour, starch, milk powder), coating filtration, and filtration of fruit juice and beer.

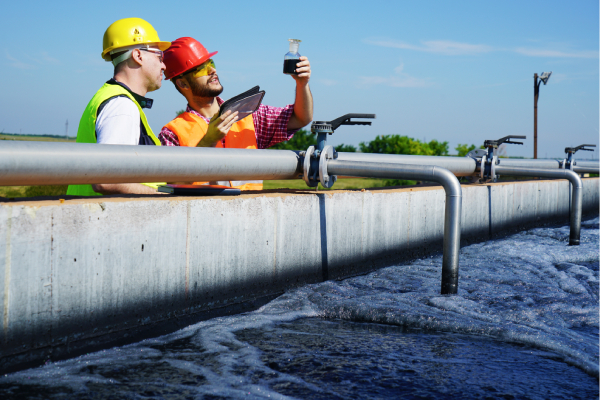

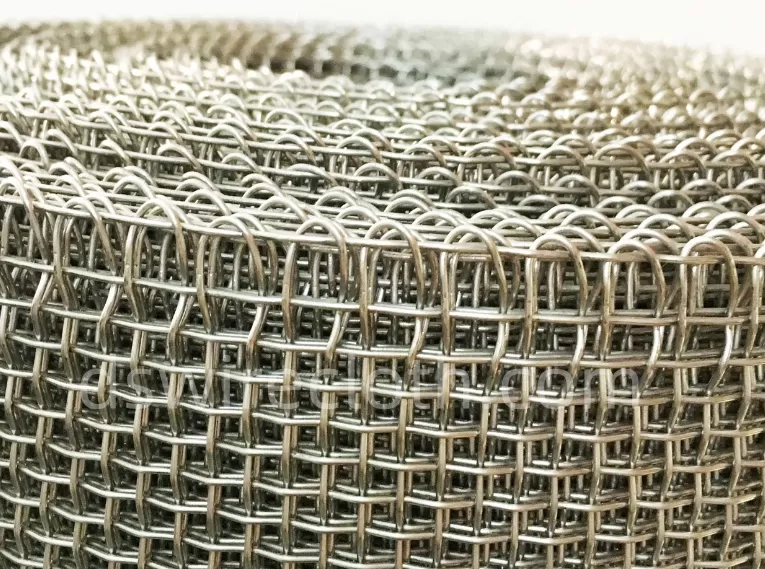

Coarse screening grade (1mm – 20mm, 1–16 mesh): Suitable for ore classification, sand and gravel screening, oil drilling mud filtration, chip screening in the chemical fiber industry, and sewage treatment screening.

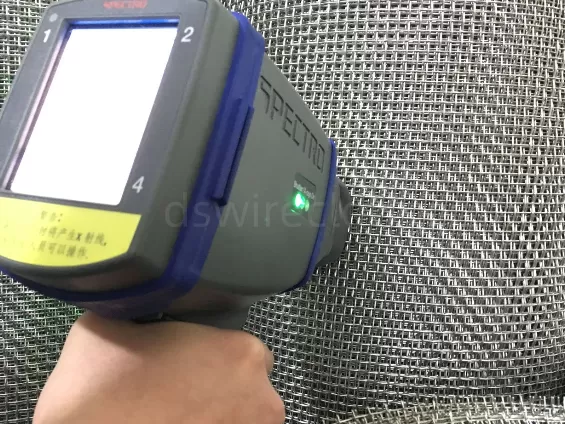

As a manufacturer specializing in the production of stainless steel woven mesh, Dashang Wire Mesh strictly controls the selection of raw materials in terms of product quality to ensure the use of high-quality stainless steel wire to ensure the corrosion resistance, strength and service life of the woven mesh. Through advanced production technology and strict quality inspection system, we ensure that each batch of products meets high quality standards and provides customers with reliable products.

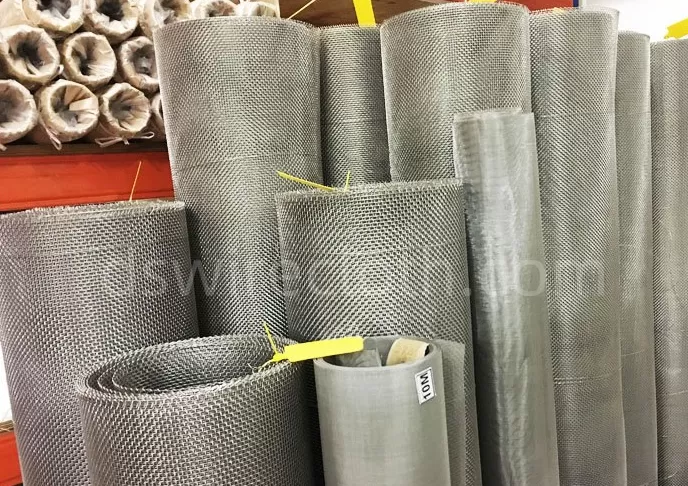

Stainless steel square mesh available in stock - Stainless steel coarse mesh

Mesh No.	Wire Diameter		Opening Size		Open Area	Weave Type	Roll Width Max
Mesh No.	inch	mm	inch	mm	%		mm
1×1	0.1575	4.000	0.8425	21.400	71.0	Plain	2000
2×2	0.0984	2.500	0.4016	10.200	64.5	Plain	2000
3×3	0.0787	2.000	0.2546	6.467	58.3	Plain	2000
4×4	0.0630	1.600	0.1870	4.750	56.0	Plain	2000
4×4	0.0472	1.200	0.2028	5.150	65.8	Plain	2000
5×5	0.0394	1.000	0.1606	4.080	64.5	Plain	2000
6×6	0.0472	1.200	0.1194	3.033	51.3	Plain	2000
6×6	0.0350	0.890	0.1316	3.343	62.4	Plain	2000
8×8	0.0280	0.710	0.0970	2.465	60.3	Plain	2000
10×10	0.0252	0.640	0.0748	1.900	56.0	Plain	2000
10×10	0.0201	0.510	0.0799	2.030	63.9	Plain	2000
12×12	0.0230	0.584	0.0603	1.533	52.4	Plain	2000
12×12	0.0200	0.508	0.0633	1.609	57.8	Plain	2000
14×14	0.0118	0.300	0.0715	1.817	73.7	Plain	2000
14×14	0.0180	0.457	0.0534	1.357	56.0	Plain	2000
14×14	0.0200	0.508	0.0514	1.306	51.8	Plain	2000
16×16	0.0098	0.250	0.0616	1.564	74.3	Plain	2000
16×16	0.0126	0.320	0.0588	1.494	67.8	Plain	2000
16×16	0.0180	0.457	0.0445	1.131	50.7	Plain	2000
17×17	0.0126	0.320	0.0499	1.268	63.7	Plain	2000
18×18	0.0160	0.406	0.0428	1.088	53.0	Plain	2000
20×20	0.0197	0.500	0.0359	0.911	41.7	Plain	2000
20×20	0.0160	0.406	0.0340	0.864	46.3	Plain	2000
23×23	0.0126	0.320	0.0374	0.950	56.0	Plain	2000
24×24	0.0140	0.356	0.0360	0.914	51.8	Plain	2000
25×25	0.0126	0.320	0.0309	0.784	50.4	Plain	2000
30×30	0.0177	0.450	0.0240	0.608	33.0	Twill	2000
30×30	0.0118	0.300	0.0215	0.547	41.7	Plain	2000
30×30	0.0065	0.165	0.0268	0.682	64.8	Plain	2000
35×35	0.0177	0.450	0.0156	0.397	21.9	Plain	1300
35×35	0.0126	0.320	0.0160	0.406	31.3	Plain	2000
35×35	0.0100	0.254	0.0186	0.472	42.3	Plain	2000
40×40	0.0071	0.180	0.0215	0.546	56.5	Plain	2000
40×40	0.0100	0.254	0.0186	0.472	42.3	Plain	2000
50×50	0.0090	0.229	0.0160	0.406	40.9	Plain	2000
50×50	0.0080	0.203	0.0120	0.305	36.0	Plain	2000
54x54	0.0063	0.160	0.0137	0.348	46.9	Plain	2000
60×60	0.0055	0.140	0.0145	0.368	52.5	Plain	2000
60×60	0.0063	0.160	0.0122	0.310	43.5	Plain	2000
60×60	0.0075	0.191	0.0091	0.232	30.1	Plain	2000
60×60	0.0070	0.178	0.0097	0.245	33.6	Plain	2000

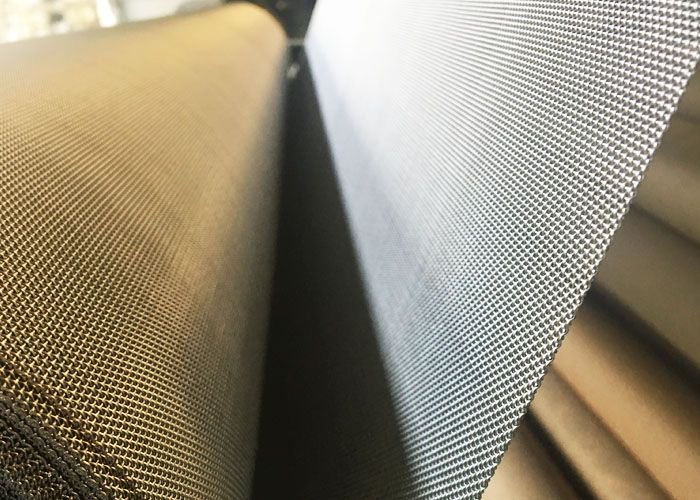

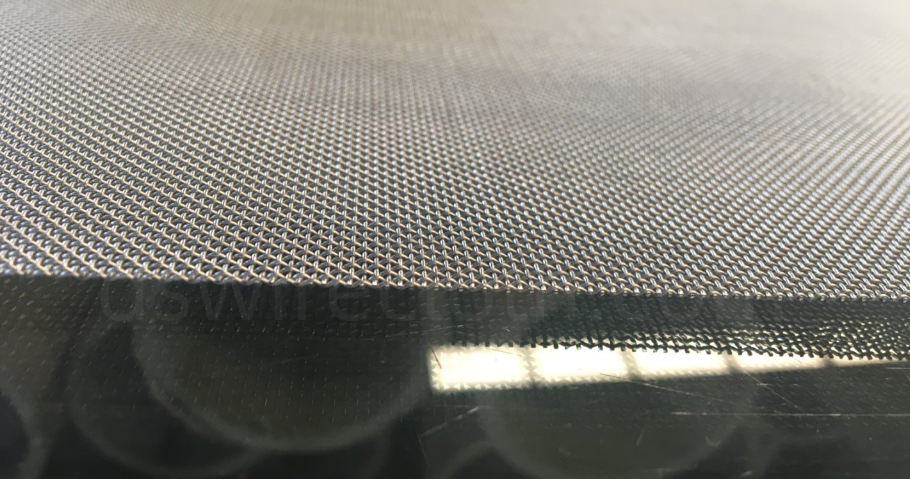

Stainless steel fine mesh

Mesh No.	Wire Diameter		Opening Size		Open Area	Weave Type	Roll Width Max
Mesh No.	inch	mm	inch	mm	%		mm
70×70	0.0063	0.160	0.0080	0.203	31.3	Plain	2000
70×70	0.0059	0.150	0.0084	0.213	34.4	Plain	2000
80×80	0.0055	0.140	0.0070	0.178	31.3	Plain	2000
80×80	0.0051	0.130	0.0074	0.188	34.9	Plain	2000
80×80	0.0047	0.120	0.0078	0.198	38.7	Plain	2000
90×90	0.0047	0.120	0.0064	0.162	33.0	Plain	2000
100×100	0.0045	0.114	0.0055	0.140	30.4	Plain	2000
100×100	0.0040	0.102	0.0060	0.152	35.8	Plain	2000
100×100	0.0035	0.089	0.0065	0.165	42.2	Plain	2000
110×110	0.0028	0.070	0.0063	0.161	48.6	Plain	2000
110×110	0.0035	0.090	0.0055	0.141	37.2	Plain	2000
120×120	0.0035	0.090	0.0048	0.122	33.0	Plain	2000
124×124	0.0031	0.080	0.0049	0.125	37.1	Plain	2000
150×150	0.0024	0.060	0.0043	0.109	41.7	Plain	2000
150×150	0.0028	0.071	0.0039	0.098	33.7	Plain	2000
154×154	0.0026	0.065	0.0039	0.100	36.7	Plain	2000
160×160	0.0021	0.053	0.0042	0.106	44.4	Plain	2000
170×170	0.0022	0.055	0.0037	0.094	39.9	Plain	2000
180×180	0.0021	0.053	0.0035	0.088	39.0	Plain	2000
190×190	0.0022	0.055	0.0031	0.079	34.6	Plain	2000
194×194	0.0024	0.060	0.0028	0.071	29.3	Plain	2000
200×200	0.0020	0.050	0.0030	0.077	36.8	Plain	2000
200×200	0.0022	0.055	0.0028	0.072	32.1	Twill	2000
250×250	0.0016	0.040	0.0024	0.062	36.8	Twill	2000
265×265	0.0016	0.040	0.0022	0.056	34.0	Twill	2000
270×270	0.0016	0.040	0.0021	0.054	33.0	Twill	2000
300×300	0.0016	0.040	0.0018	0.045	27.8	Twill	2000
325×325	0.0012	0.030	0.0019	0.048	38.0	Plain	2000
325×325	0.0014	0.036	0.0017	0.042	29.1	Twill	2000
325×325	0.0014	0.036	0.0017	0.043	29.6	Twill	2000
360×360	0.0013	0.032	0.0015	0.039	29.9	Twill	2000
400×400	0.0012	0.030	0.0013	0.034	27.8	Twill	1600
500×500	0.0010	0.025	0.0010	0.025	25.0	Twill	1500
635×635	0.0008	0.020	0.0008	0.020	24.3	Twill	1300
