Sintered Mesh Filters

At Dashang, we pride ourselves on providing high-quality sintered filter solutions that cater to a wide range of industrial applications. Our Sintered Metal Filters are meticulously designed to meet the demands of various industries, ensuring the removal of contaminants and impurities from liquids and gasses, ensuring superior performance, durability, and reliability.

What is the Sintered Filter Working Principle?

The working principle of a sintered filter involves using a sintered metal mesh or powder to filter particles or fluids. Sintering is a manufacturing process that compacts metal particles at high temperatures and pressures to form a solid, porous structure. A common example is the Sintered Mesh Filter, which employs these sintered layers for efficient filtration.

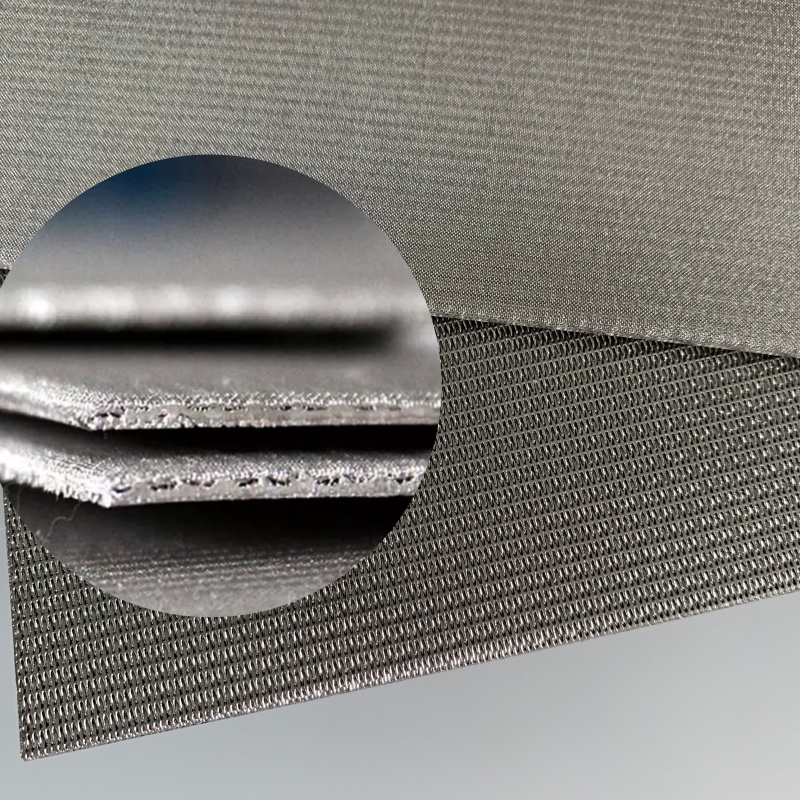

A sintered filter comprises multiple layers of porous sintered material, where pore sizes are controlled during manufacturing. The filter operates on the principle of size exclusion, trapping particles larger than the pore size while allowing smaller particles and fluids to pass through. When a fluid or gas flows through the sintered filter, particles are captured on the surface or within the pores, effectively separating them from the desired fluid or gas. The filter's effectiveness depends on the pore size and the material's ability to capture particles.


Sintered filters are widely used across various industries, including chemical processing, oil and gas, pharmaceuticals, food and beverage, and wastewater treatment. They offer high durability, resistance to temperature and pressure, and can be easily cleaned and reused.

What is a Sintered Metal?


A sintered metal is created by compacting and heating metal powders to a temperature below their melting point. This sintering process bonds the metal particles together, forming a solid piece. During sintering, the metal particles undergo diffusion and atomic rearrangement, resulting in strong bonds between them.

Who invented the sintering and started to use the sintered products?


The first recorded use of sintering dates back to around 7000 BCE in ancient Mesopotamia, where clay was sintered to create pottery. The ancient Egyptians also employed sintering techniques to produce pottery, glass, and jewelry.


In modern history, the development and advancement of sintering techniques can be credited to several inventors and researchers. Notably, Benjamin C. Tilghman, an American engineer, developed a sintering process for iron ore in the late 19th century. His method, known as the Tilghman process, revolutionized the iron and steel industry by enabling the efficient production of iron and steel from lower-grade hematite ores.


Since then, sintering techniques have been widely adopted in various industries, including metallurgy, ceramics, electronics, and powder metallurgy. The use of sintered products has significantly advanced these industries by providing materials with greater strength, higher density, and improved performance.


The properties of sintered metals can vary based on the specific metals and processing conditions used. They often have high strength, good wear resistance, and excellent dimensional stability. Depending on the application, they can be either porous or non-porous.


Sintered metal components are widely used across many industries, including automotive, aerospace, construction, electronics, and manufacturing. Applications include bearings, filters, gears, bushings, cutting tools, and more. The ability to produce complex shapes and achieve precise tolerances makes sintered metals a versatile choice for various engineering needs.

What the Sintering Metal Filter Manufacturing Process?


Sintering Metal Filter Manufacturing Process


1. Material Selection

The process begins with selecting the appropriate metal powder or metal fiber material. Common materials include stainless steel, bronze, nickel, and titanium, chosen based on the specific application requirements, such as chemical compatibility, temperature resistance, and mechanical strength.


2. Mixing

The selected metal powders are mixed with binding agents and other additives to ensure uniform particle distribution. This step is crucial for achieving the desired mechanical properties and pore structure in the final product.


3. Compaction

The mixed powder is then compacted using techniques like uniaxial pressing, isostatic pressing, or extrusion to form a green body. This step gives the material its initial shape and density, preparing it for the shaping process.


4. Shaping

The compacted green body is shaped into the desired form of the filter. This can involve processes such as pressing into molds, extrusion through dies, or rolling into sheets. The shaping process determines the filter's final geometry.


5. Debinding

The shaped green body undergoes a debinding process to remove the binding agents added during the mixing stage. This is typically done by heating the material in a controlled environment, where the binders are vaporized and removed without compromising the structure of the compacted metal.


6. Sintering

The debound green body is sintered at high temperatures in a controlled atmosphere furnace. Sintering causes the metal particles to bond together at their contact points, resulting in a solid, porous structure. The sintering temperature and duration are carefully controlled to achieve the desired porosity and mechanical properties.


7. Calibration

After sintering, the filters may undergo calibration processes to ensure they meet the required dimensions and tolerances. This can involve additional pressing, machining, or sizing operations to achieve the exact specifications.


8. Surface Treatment

The sintered filters may receive various surface treatments to enhance their performance. Common treatments include polishing, coating, and passivation to improve corrosion resistance, mechanical strength, and overall durability.


9. Quality Control

Throughout the manufacturing process, rigorous quality control measures are implemented. This includes visual inspections, dimensional checks, porosity measurements, and mechanical testing to ensure the filters meet all specifications and performance criteria.


10. Packaging

Once the filters pass quality control, they are carefully packaged to prevent damage during transportation and storage. Packaging may include protective covers, cushioning materials, and appropriate labeling to ensure safe and efficient handling.



Why to Use Metal Sintering to Make Filter?


of various industries, ensuring the removal of contaminants and impurities from liquids and gasses, ensuring superior performance, durability, and reliability.

What is the Sintered Filter Working Principle?

The working principle of a sintered filter involves using a sintered metal mesh or powder to filter particles or fluids. Sintering is a manufacturing process that compacts metal particles at high temperatures and pressures to form a solid, porous structure. A common example is the Sintered Mesh Filter, which employs these sintered layers for efficient filtration.


A sintered filter comprises multiple layers of porous sintered material, where pore sizes are controlled during manufacturing. The filter operates on the principle of size exclusion, trapping particles larger than the pore size while allowing smaller particles and fluids to pass through. When a fluid or gas flows through the sintered filter, particles are captured on the surface or within the pores, effectively separating them from the desired fluid or gas. The filter's effectiveness depends on the pore size and the material's ability to capture particles.


Sintered filters are widely used across various industries, including chemical processing, oil and gas, pharmaceuticals, food and beverage, and wastewater treatment. They offer high durability, resistance to temperature and pressure, and can be easily cleaned and reused.

What is a Sintered Metal?


A sintered metal is created by compacting and heating metal powders to a temperature below their melting point. This sintering process bonds the metal particles together, forming a solid piece. During sintering, the metal particles undergo diffusion and atomic rearrangement, resulting in strong bonds between them.

Who invented the sintering and started to use the sintered products?


The first recorded use of sintering dates back to around 7000 BCE in ancient Mesopotamia, where clay was sintered to create pottery. The ancient Egyptians also employed sintering techniques to produce pottery, glass, and jewelry.


In modern history, the development and advancement of sintering techniques can be credited to several inventors and researchers. Notably, Benjamin C. Tilghman, an American engineer, developed a sintering process for iron ore in the late 19th century. His method, known as the Tilghman process, revolutionized the iron and steel industry by enabling the efficient production of iron and steel from lower-grade hematite ores.


Since then, sintering techniques have been widely adopted in various industries, including metallurgy, ceramics, electronics, and powder metallurgy. The use of sintered products has significantly advanced these industries by providing materials with greater strength, higher density, and improved performance.


The properties of sintered metals can vary based on the specific metals and processing conditions used. They often have high strength, good wear resistance, and excellent dimensional stability. Depending on the application, they can be either porous or non-porous.


Sintered metal components are widely used across many industries, including automotive, aerospace, construction, electronics, and manufacturing. Applications include bearings, filters, gears, bushings, cutting tools, and more. The ability to produce complex shapes and achieve precise tolerances makes sintered metals a versatile choice for various engineering needs.

What the Sintering Metal Filter Manufacturing Process?


Sintering Metal Filter Manufacturing Process


1. Material Selection

The process begins with selecting the appropriate metal powder or metal fiber material. Common materials include stainless steel, bronze, nickel, and titanium, chosen based on the specific application requirements, such as chemical compatibility, temperature resistance, and mechanical strength.


2. Mixing

The selected metal powders are mixed with binding agents and other additives to ensure uniform particle distribution. This step is crucial for achieving the desired mechanical properties and pore structure in the final product.


3. Compaction

The mixed powder is then compacted using techniques like uniaxial pressing, isostatic pressing, or extrusion to form a green body. This step gives the material its initial shape and density, preparing it for the shaping process.


4. Shaping

The compacted green body is shaped into the desired form of the filter. This can involve processes such as pressing into molds, extrusion through dies, or rolling into sheets. The shaping process determines the filter's final geometry.


5. Debinding

The shaped green body undergoes a debinding process to remove the binding agents added during the mixing stage. This is typically done by heating the material in a controlled environment, where the binders are vaporized and removed without compromising the structure of the compacted metal.


6. Sintering

The debound green body is sintered at high temperatures in a controlled atmosphere furnace. Sintering causes the metal particles to bond together at their contact points, resulting in a solid, porous structure. The sintering temperature and duration are carefully controlled to achieve the desired porosity and mechanical properties.


7. Calibration

After sintering, the filters may undergo calibration processes to ensure they meet the required dimensions and tolerances. This can involve additional pressing, machining, or sizing operations to achieve the exact specifications.


8. Surface Treatment

The sintered filters may receive various surface treatments to enhance their performance. Common treatments include polishing, coating, and passivation to improve corrosion resistance, mechanical strength, and overall durability.


9. Quality Control

Throughout the manufacturing process, rigorous quality control measures are implemented. This includes visual inspections, dimensional checks, porosity measurements, and mechanical testing to ensure the filters meet all specifications and performance criteria.


10. Packaging

Once the filters pass quality control, they are carefully packaged to prevent damage during transportation and storage. Packaging may include protective covers, cushioning materials, and appropriate labeling to ensure safe and efficient handling.


Why Use Metal Sintering to Make Filters?



1. Enhanced Filtration Efficiency

Sintered metal filters provide precise control over pore size and distribution, resulting in high filtration efficiency. They can effectively trap particles of various sizes while allowing the passage of fluids or gases, ensuring reliable performance in critical applications.


2. Durability and Strength

The sintering process creates a robust and durable filter structure that can withstand high pressures and mechanical stresses. Sintered metal filters are resistant to deformation and wear, offering a long service life even in demanding environments.


3. Customizable Design

Metal sintering allows for the creation of filters with complex shapes and tailored properties. Manufacturers can design filters with specific pore sizes, shapes, and distributions to meet unique application requirements, providing a high degree of customization.


4. Chemical and Temperature Resistance

Sintered metal filters exhibit excellent resistance to a wide range of chemicals and extreme temperatures. This makes them suitable for use in harsh industrial environments, such as chemical processing, petrochemical industries, and high-temperature applications.


5. Easy Cleaning and Maintenance

The rigid structure of sintered metal filters enables easy cleaning and regeneration. They can be backwashed, ultrasonically cleaned, or chemically cleaned without losing their structural integrity or filtration performance, reducing maintenance costs and downtime.


6. Wide Range of Applications

Due to their versatility and reliability, sintered metal filters are used in a broad spectrum of industries. Applications include liquid and gas filtration, fluidized beds, flame arrestors, sound attenuation, and catalytic recovery, among others. Their adaptability makes them an ideal choice for diverse filtration needs.


Using metal sintering to make filters combines superior performance characteristics with durability and flexibility, making them an excellent solution for various industrial filtration challenges.


What are the Material Choices for Sintered Filters?

### Material Choices for Sintered Filters


#### 1. Stainless Steel Filters

Stainless steel is a popular choice for sintered filters due to its excellent mechanical properties, corrosion resistance, and high-temperature performance. Common stainless steel grades used in sintered filters include:


- 316L: Known for its superior corrosion resistance, especially in marine and chloride environments. It also offers good mechanical properties and weldability.

- 304L: A widely used stainless steel grade with good corrosion resistance and strength. It is less resistant to chlorides than 316L but is still suitable for many applications.

- 310: This grade has excellent high-temperature oxidation resistance and is used in applications requiring high strength at elevated temperatures.

- 347: Contains columbium-tantalum, providing good resistance to intergranular corrosion and making it suitable for high-temperature applications.

- 430: A ferritic stainless steel with good corrosion resistance and formability. It is commonly used in less demanding applications where high corrosion resistance is not critical.


2. Bronze

Bronze sintered filters are known for their excellent thermal and electrical conductivity, good corrosion resistance, and ease of machining. They are often used in applications requiring good wear resistance and moderate strength. Bronze filters are typically used in hydraulic systems, lubrication systems, and various fluid control applications.


3. Inconel® Alloys

Inconel® alloys are nickel-chromium-based superalloys known for their excellent oxidation and corrosion resistance, particularly in high-temperature environments. These alloys maintain their strength and stability under extreme conditions, making them ideal for aerospace, chemical processing, and high-temperature filtration applications. Common Inconel® alloys used in sintered filters include:


- Inconel® 600: Offers good oxidation and corrosion resistance at elevated temperatures.

- Inconel® 625: Known for its exceptional fatigue and thermal-fatigue strength, oxidation resistance, and weldability.

- Inconel® 718: Offers high strength and corrosion resistance, with good performance at both high and low temperatures.


4. Nickel and Monel® Alloys

Nickel and Monel® alloys are known for their excellent corrosion resistance, particularly in reducing and acidic environments. These materials also offer good mechanical properties and high-temperature resistance, making them suitable for demanding filtration applications.


- Nickel 200/201: Pure nickel alloys with excellent corrosion resistance in alkaline environments and good thermal and electrical conductivity.

- Monel® 400: A nickel-copper alloy with superior resistance to seawater, acids, and alkaline solutions. It is highly durable and offers good mechanical properties over a wide temperature range.


These material choices allow sintered filters to be tailored for specific applications, ensuring optimal performance, durability, and reliability in various industrial environments.


How Sintered Metal Filters Work?


Sintered metal filters play a vital role in numerous filtration systems, offering efficient contaminant retention and backwash capabilities. Understanding their operation involves examining key aspects such as contaminant retention, backwash capability, and pressure drop. Let's explore how these filters work:

Contaminant Retention

A primary function of sintered metal filters is their ability to capture contaminants from the fluid they process. This retention is influenced by several factors:

  • Contaminant Characteristics: The nature of the particles in the fluid, including their shape, density, and size, determines how effectively the filter can capture and retain them.

  • Filter Element Design: The design of the filter, including its pore size and structure, is crucial in retaining contaminants. Sintered metal filters are engineered with precise pore sizes to target specific particles.

Backwash Capability

Sintered metal filters are equipped with a valuable backwash capability, allowing them to cleanse themselves periodically and maintain efficiency over time. Here's how it works:

  • Increased Pressure Drops: As contaminants accumulate within the filter element, the pressure drop across the filter increases due to restricted flow caused by blocked pores.

  • Absolute Pressure Threshold: The backwash capability is activated when the pressure drop reaches a specific threshold. At this point, the filter initiates a cleaning cycle to remove accumulated contaminants.

  • Constant Fluid Flow: To ensure uninterrupted operation, sintered metal filters maintain a constant flow of fluid during the backwash process, which is essential in applications requiring continuous filtration.

Applications of Sintered Filters


Applications of Sintered Filters


Sintered filters find a wide range of applications due to their versatility and efficiency in both liquid and gas filtration/separation processes. Let's explore some of the key uses of sintered filters:


1. Liquid & Gas Filtration/Separation

Sintered filters excel in the fundamental task of filtration and separation. They are used in various industries to remove impurities, particulate matter, and contaminants from both liquids and gases. Their precisely engineered pore structures make them highly effective at this task, ensuring the purity of the filtered product.


2. Sparging

Sintered filters play a vital role in sparging applications. Spargers are devices used to introduce gases into liquids, and sintered filters serve as the medium through which the gas is dispersed. This is essential in processes like soda carbonation and beer carbonation, where controlled gas distribution is critical for achieving the desired carbonation levels in beverages.


3. Oxygen Stripping of Edible Oils

In the food industry, sintered filters are used for oxygen stripping of edible oils. Oxygen can cause spoilage in oils, leading to rancidity. Sintered filters help remove oxygen from oils, prolonging their shelf life and ensuring product quality.


4. Breather Vents

Sintered filters find applications in breather vents. Breather vents are used to equalize pressure while preventing the ingress of contaminants and moisture. Sintered filters serve as efficient barriers against external elements, making them ideal for protecting equipment and machinery.


5. Sensor Protection

Sintered filters are employed to protect sensors. Sensors used in various industries are often sensitive to environmental conditions. Sintered filters shield sensors from dust, moisture, and particulates, ensuring accurate and reliable measurements.


6. Flow Control (Throttling/Dampening)

Flow control applications benefit from sintered filters. By adjusting the flow rate of liquids or gases, sintered filters serve as throttling or dampening elements. They help regulate and control the flow of fluids in systems, ensuring precise and stable processes.


7. Air Exhaust Silencers

Sintered filters are used as air exhaust silencers. In industrial settings where noise reduction is crucial, sintered filters help attenuate the noise generated during air exhaust. They provide both filtration and sound-dampening capabilities.


8. Flow/Pressure Equalization

Sintered filters contribute to flow and pressure equalization. In systems where maintaining consistent pressure or flow is essential, sintered filters help balance and stabilize these parameters, ensuring smooth operation.


These applications highlight the critical role that sintered filters play across various industries, from food and beverage to industrial manufacturing, by providing reliable and efficient filtration solutions.


Applications of Sintered Metal Filters in Various Industries

Sintered metal filters find applications across a wide range of industries due to their excellent filtration properties, durability, and versatility. Here are some common industries where sintered metal filters are used:


1. Automotive Industry: Sintered metal filters are used in automotive applications such as fuel filters, oil filters, and air filters. They help remove impurities and contaminants from fluids and air, ensuring the smooth operation of vehicles.


2. Chemical Processing: In the chemical industry, sintered metal filters are used for filtration and separation processes. They are used to filter chemicals, solvents, and other substances to ensure purity and quality.


3. Oil and Gas Industry: Sintered metal filters are used in the oil and gas industry for various applications such as filtration of natural gas, filtration of hydraulic fluids, and filtration of drilling fluids. They help remove contaminants and ensure the smooth operation of equipment.


4. Water Treatment: Sintered metal filters are used in water treatment applications for filtration and purification purposes. They are used to remove impurities, sediment, and other contaminants from water, making it safe for consumption and other uses.


5. Food and Beverage Industry: Sintered metal filters are used in the food and beverage industry for filtration of liquids such as beer, wine, and juices. They help remove particles, yeast, and other impurities, ensuring the quality and clarity of the final product.


6. Pharmaceutical Industry: In the pharmaceutical industry, sintered metal filters are used for filtration and separation of pharmaceutical products. They help remove contaminants and ensure the purity and quality of the final product.


7. Aerospace Industry: Sintered metal filters are used in the aerospace industry for various applications such as filtration of hydraulic fluids, lubricants, and fuel. They help remove contaminants and ensure the smooth operation of aircraft systems.


8. Environmental Monitoring: Sintered metal filters are used in environmental monitoring applications for air and water quality monitoring. They help collect particulate matter and other contaminants for analysis and monitoring purposes.







Sintered Mesh Filters

Why Choose Dashang for Metal Sintered Filters?

Expertise and Experience: With years of experience in the filtration industry, Dashang is a trusted manufacturer known for Sintered Mesh Filters.

Advanced Manufacturing: Our state-of-the-art manufacturing facilities and rigorous quality control processes ensure that each filter meets the highest standards of performance and reliability.

Comprehensive Support: From consultation to after-sales service, our team of experts is dedicated to providing comprehensive support to meet your filtration needs.

Contact Us

Discover the benefits of Dashang sintered filters for your industrial applications. Contact us today to learn more about our products and services, or to request a quote for your specific requirements.
