Stainless steel welded wire mesh

Stainless steel welded wire mesh is made of stainless steel wire through an automatic welding mesh machine. Compared with galvanized welded wire mesh, the corrosion resistance of stainless steel welded wire mesh depends on its material itself, not the surface coating, so the selection of its material is very important.


Features of stainless steel welded wire mesh:

1. The prominent feature of stainless steel welded wire mesh is that it is made of stainless steel wire, and its corrosion resistance and service life are usually longer than ordinary hot-dip galvanized welded wire mesh.

2. Stainless steel welded wire mesh usually has better surface quality due to no need for surface coating treatment.

3. The performance determines the use, and the use determines the finished product style. According to the needs of use, it can be further processed into various stainless steel wire mesh products.

Specification parameters of stainless steel welded wire mesh:

1. Grades of stainless steel materials: commonly used are 304, 304L, 316, 316L, etc.

2. Steel wire diameter: According to different application requirements, different wire diameters can be selected for mesh surface steel wire and edge end steel wire.

3. Mesh size: 1/2'', 1'', 1-1/2'', 2'', 3'', 4'', etc. It is usually made into a square hole, but it can also be made into a rectangular hole.

4. Form: stainless steel mesh sheet/panel and stainless steel mesh roll.

5. Length and width: The size of the mesh sheet or mesh roll depends on the requirements and convenience of actual use.

Uses of stainless steel welded wire mesh:

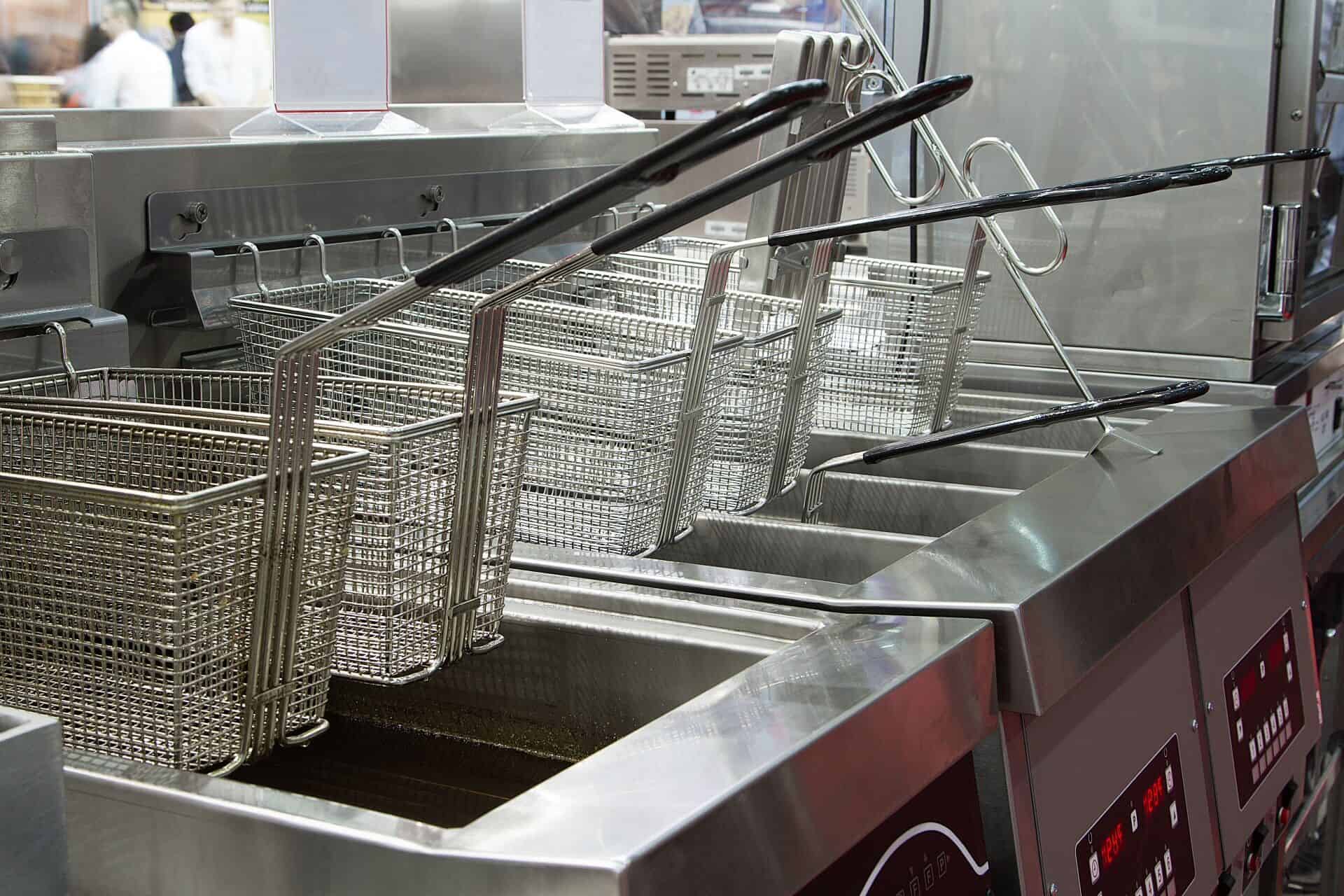

Due to its excellent tensile strength and corrosion resistance, stainless steel welded wire mesh is often used in petroleum industry, chemical industry, mining industry, manufacturing industry, food industry, construction industry, indoor and outdoor decoration and other industries. For example, it can be used as steel wire mesh material for reinforcement, fence material for site perimeter, structural material for strong corrosive environment, industrial screen and filter mesh, various customized wire mesh decoration materials, food storage and processing Food-grade stainless steel wire mesh products, and so on.

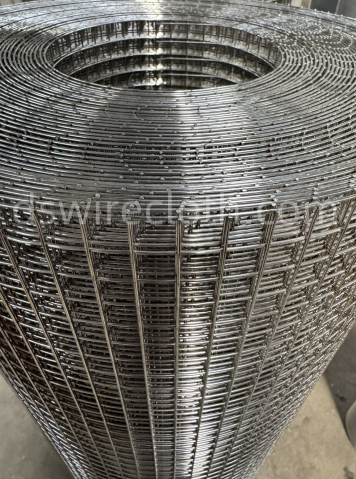

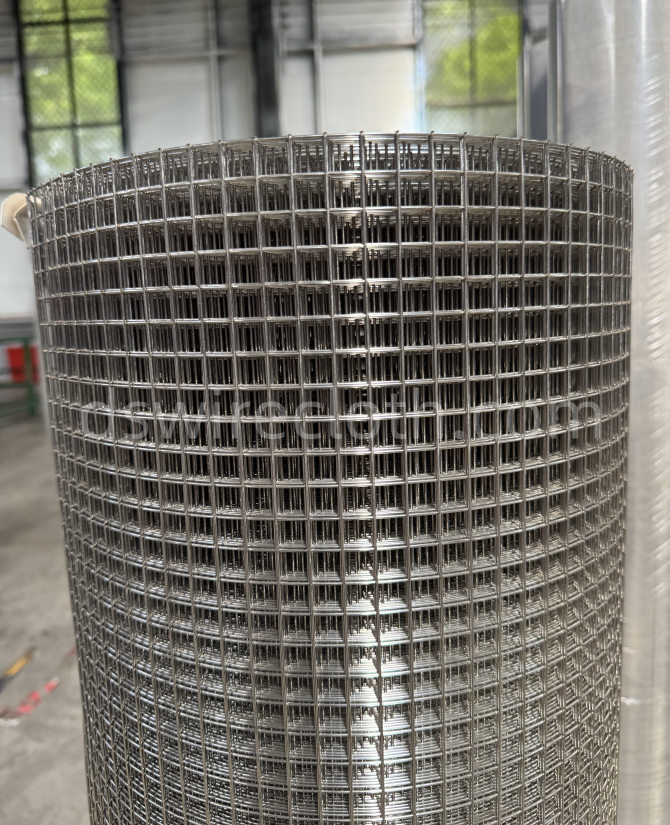

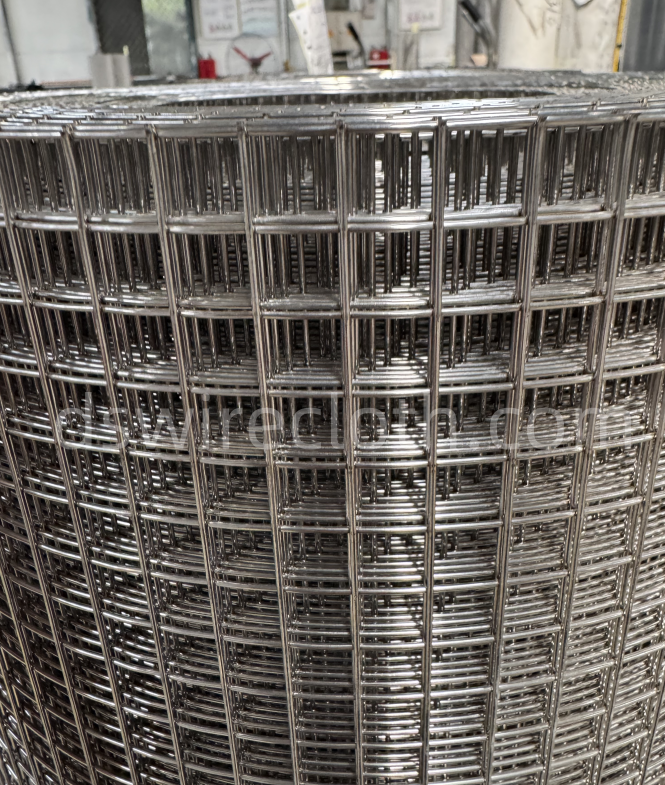

Stainless Steel/SS Welded Wire Mesh Roll
OpeningWire diameterWidth
1/4 x 1/40.5mm-0.7mm300mm-1828mm
3/4 x 3/40.7mm-2.0mm300mm-1828mm
3/8 x 3/80.7mm-1.1mm300mm-1828mm
5/8 x 5/80.8mm-1.2mm300mm-1828mm
1/2 x 1/20.45mm-1.6 mm300mm-1828mm
1 x 10.7mm-3.0mm300mm-2000mm
1 x 1/20.8mm-1.6mm300mm-1828mm
1-1/2 x 1-1/20.7mm-3.5mm300mm-1828mm
1 x 21.6mm-2.1mm300mm-1828mm
2 x 20.7mm-4.0mm300mm-2500mm
2 x 31.5mm-3.5mm300mm-2000mm
2 x 42.0mm-4.0mm300mm-1828mm
3 x 31.0mm-4.5mm300mm-2500mm
3 x 41.5mm-4.5mm300mm-2000mm
4 x 41.0mm-4.5mm300mm-2500mm
5 x 52.5mm-4.5mm300mm-2500mm
6 x 62.5mm-4.5mm300mm-2500mm

Stainless Steel/SS Welded Wire Mesh Panels
Mesh SizeWire diameter
In InchIn MMMM
1/2 x 1/212.7mm1.0mm-2.0 mm
1 x 125.4mm1.5mm-3.5mm
1 1/431.8mm2.0mm-4.0mm
1 1/238.1mm2.0mm-5.0mm 2 x 2
2 x 250.8mm2.0mm-6.0mm
3 x 376.2mm3.0mm-7.0mm
4 x 4101.6mm3.0mm-8.0mm
5 x 5127.0mm4.0mm-9.0mm
6 x 6152.4mm4.0mm-10.0mm

Request a quote

If you have any questions or want to buy our products please contact us at any time, we will reply you as soon as possible!
