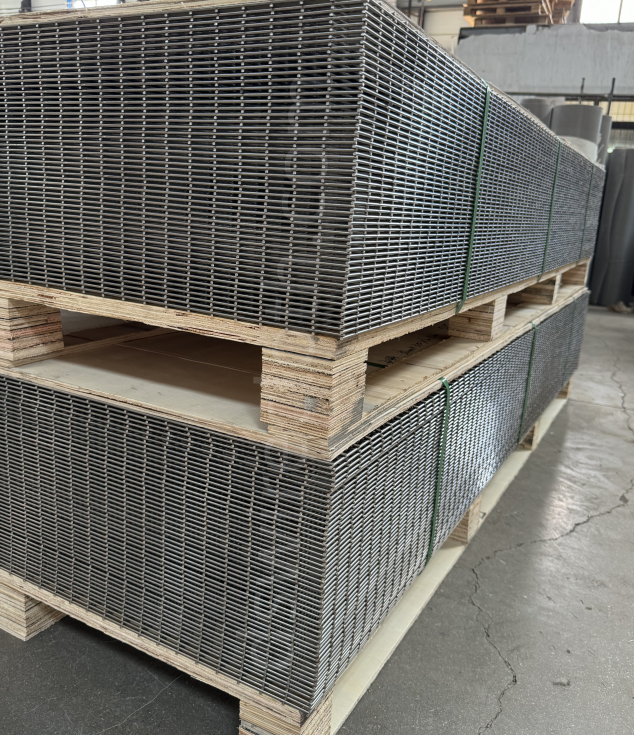

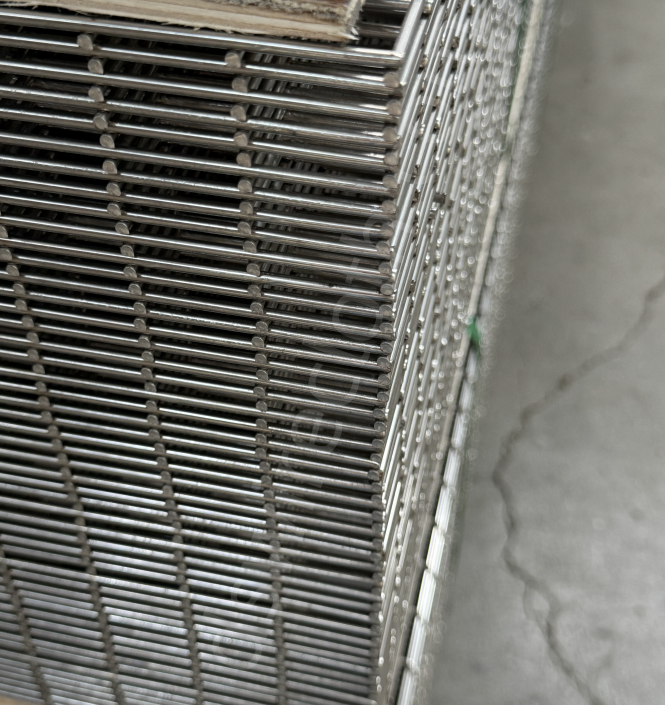

Stainless steel welded wire mesh panels

Stainless steel welded wire mesh is made of stainless steel wire through an automatic welding mesh machine. Compared with galvanized welded wire mesh, the corrosion resistance of stainless steel welded wire mesh depends on its material itself, not the surface coating, so the selection of its material is very important.


Welded mesh panels are commonly used for:

Bird Aviary Mesh

Reinforcing Mesh

Landscaping/ Greenwalls

Machinery/Guard Mesh

Gabions


PRODUCT DESCRIPTION

Stainless steel welded wire mesh panels

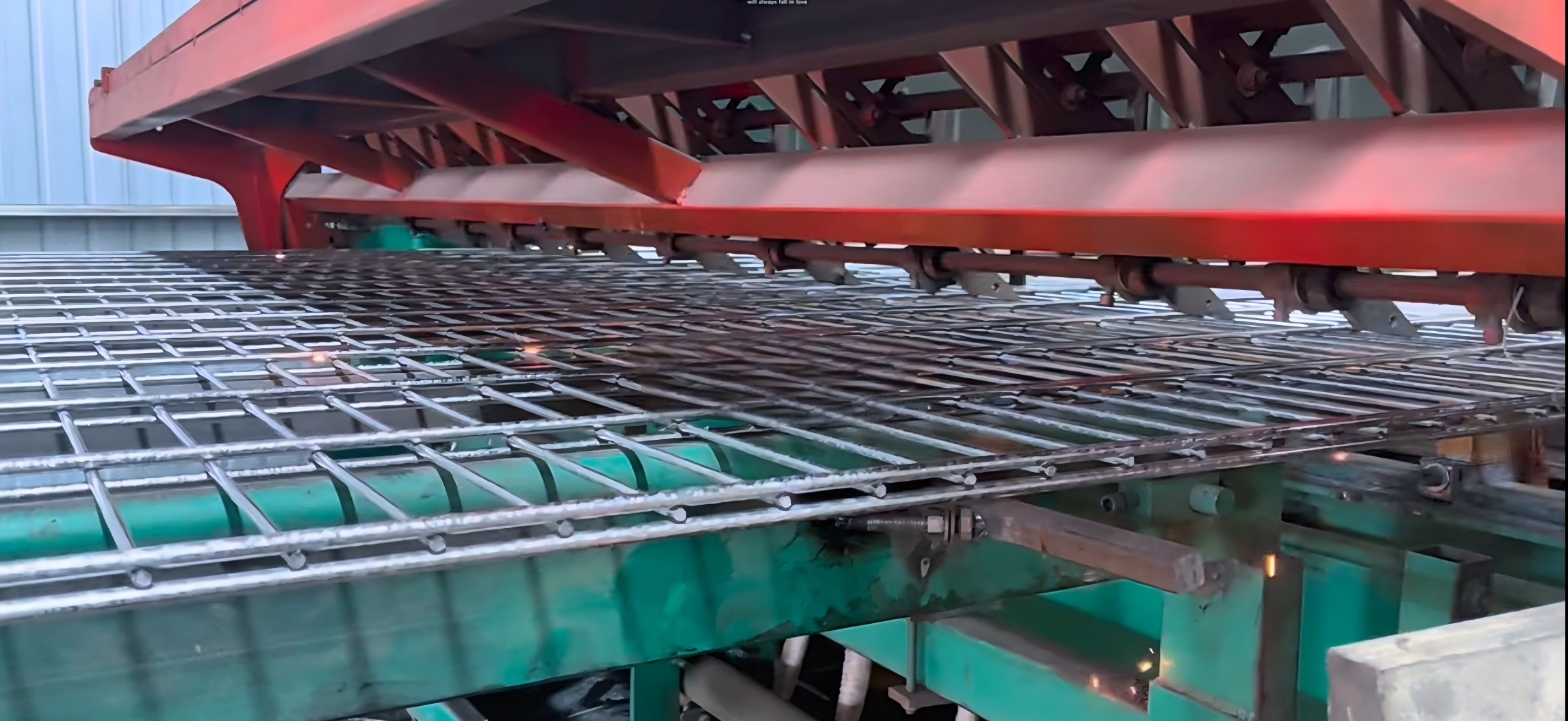

Metal welded mesh is a rigid mesh material formed by welding longitudinal (warp) and transverse (weft) metal wires at the intersection through resistance welding. It has a stable structure and strong bearing capacity, and is a basic material in the industrial and construction fields. It uses low-carbon steel wire (Q195, Q235), stainless steel wire (304, 316L), galvanized steel wire, PVC coated steel wire and other raw materials, and the warp and weft metals are fused through motor pressure to form a firm weld. The welding process is completed on a high-speed assembly line, and the continuous output speed of the mesh can reach 20-100 meters/minute.



After welding, the welded mesh panels can be processed as needed, such as:

Low carbon steel welded mesh can be hot dip galvanized, where the mesh is immersed in 450°C molten zinc to form a 60-100μm zinc layer for corrosion prevention ( for outdoor/humid

environments )

Low carbon steel welded mesh can be electro-galvanized. The mesh is placed in an electrolytic cell to deposit a zinc layer (5-20μm), forming a smooth zinc coating on the surface, which can achieve basic corrosion protection (low cost)

Stainless steel welded wire mesh panels

                                                                                                   Stainless steel welded wire mesh panels


Metal welded mesh panel is widely used in the following fields due to its advantages of high strength, regular grid, batch production and cost-effectiveness:

1. Architecture and Engineering

Application Scenario

effect

Typical Specifications

Concrete reinforcement

Replace steel mesh to prevent cracking (floor, wall, bridge)

Wire diameter 3-12mm, mesh size 50-200mm

Foundation pit support

Stabilize soil and prevent landslides

Thick wire (≥5mm) + small hole (≤50mm)

External wall insulation anchoring

Fix the insulation board to enhance the bonding strength

Wire diameter 2-3mm, mesh size 20-50mm

Partition wall gypsum board lining mesh

Prevent seam cracking

Wire diameter 0.8-1.2mm, mesh size 10-25mm



2. Industry and protection

Application Scenario

effect

Key Features

Mechanical equipment guards

Protection against human contact with rotating parts

Small hole (≤10mm) + high rigidity

Warehouse shelf panels

Load-bearing cargo, breathable and moisture-proof

Wire diameter 4-6mm, mesh size 30-50mm

Mine Screening

Classification of ore and coal

Wear-resistant material (65Mn steel) + thick wire

Breeding cages

Chicken cages, rabbit cages, aquaculture cages

Galvanized for rust prevention, mesh size 25-50mm



3. Agriculture and Horticulture

Application Scenario

effect

Design Points

Greenhouse support

Support climbing crops (cucumbers, grapes)

Galvanized for rust prevention, mesh size 150-200mm

Livestock Fence

Pig pens, sheep pens, pasture partitions

High strength, wire diameter ≥3mm

Seedbed Net

Seedling tray base, breathable and drainable

304 stainless steel, wire diameter 1-2mm



4. Home and public facilities

Application Scenario

effect

Example

Anti-theft door and window lining

Enhanced anti-destruction

Hidden in plastic steel/aluminum alloy profile

Garden Fence

Partition protection, beautiful and transparent

PVC coating + green/black coating

Supermarket trolley basket

Lightweight load-bearing structure

Thin wire diameter (1.5mm) + small hole

Barbecue grill

Food support, high temperature resistance

304 stainless steel, mesh 10×10mm


Stainless steel welded wire mesh panels       Stainless steel welded wire mesh panels       Stainless steel welded wire mesh panels

      Stainless steel welded wire mesh panels                    Stainless steel welded wire mesh panels                     Stainless steel welded wire mesh panels

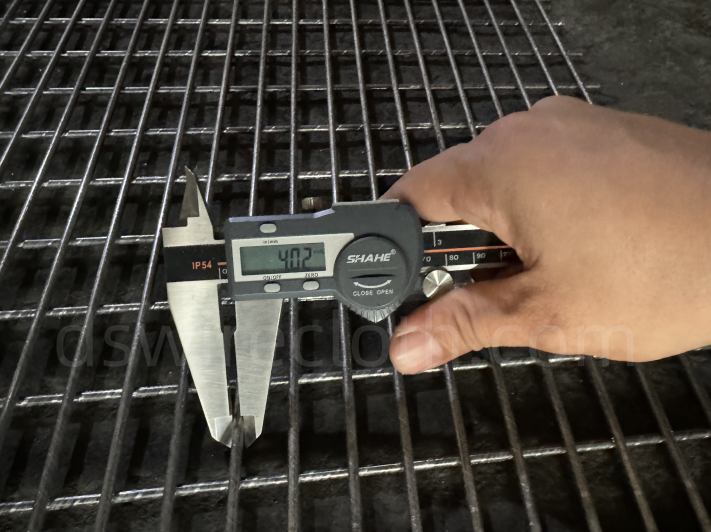

                 Wire diameter measurement


Stainless steel welded mesh panels has excellent corrosion resistance, high strength, hygiene and safety, and aesthetics, and is a high-performance solution in harsh environments.

1. Harsh industrial environment

Scenario

effect

Specifications Example

Chemical filter screen

Acid and alkali resistant filter (reactor, filter press)

316L, wire diameter 1-3mm, mesh size 0.5-5mm

Marine aquaculture cages

Anti-biological attachment + anti-salt corrosion

316L, wire diameter 4-6mm, mesh size 20-30mm

Power plant desulfurization tower grid

SO₂/Cl⁻ corrosion resistant support layer

2205 duplex steel, wire diameter 8mm, mesh size 50mm

High temperature kiln conveyor belt

Carrying workpieces, resistant to 800℃ burning

310S heat-resistant steel, wire diameter 3mm, mesh size 10mm



2. Food and Pharmaceuticals

Scenario

effect

Hygienic design

Fruit and vegetable cleaning line

Conveyor belt, water/organic acid resistant

304, pore size 5mm, electrolytic polishing

Pharmaceutical Drying Tray

Powder carrier, easy to sterilize

316L, wire diameter 0.8mm, mesh size 1.5mm

Beer fermentation tank filter

Intercept wheat residue and resist alcohol corrosion

316, wire diameter 2mm, mesh size 2mm



3. Architecture and decoration

Scenario

effect

Aesthetic design

Building curtain wall lining mesh

Concrete reinforcement + crack prevention

304, wire diameter 3mm, mesh size 100×100mm

Artistic railing screen

Hollow decoration, anti-weathering

316, wire diameter 1.5mm, mesh size 30×30mm

Indoor ceiling mesh

Industrial style decoration, light and breathable

304, wire diameter 0.6mm, mesh size 10×10mm



4. Environmental protection and energy

Scenario

effect

Technical points

Waste incinerator filter

Intercept ash and slag, high temperature corrosion resistance

310S, wire diameter 4mm, mesh size 8mm

Solar panel bracket

Lightweight load-bearing structure

304, wire diameter 2mm, mesh size 50×50mm

Water treatment aeration grid

Uniform air distribution, anti-biofilm corrosion

316L, wire diameter 3mm, mesh size 15×15mm



5. High-precision technology field

Scenario

effect

Accuracy requirements

Semiconductor cleaning basket

Wafer loading, no metal ion contamination

316L, wire diameter 0.1mm, mesh size 0.5mm

Particle accelerator shielding net

Electromagnetic shielding + ventilation and heat dissipation

304, wire diameter 0.3mm, mesh size 2mm

Spacecraft oil filter

Hydraulic system filtration, resistance to extreme temperature differences

316L, wire diameter 0.2mm, mesh size 30μm



Stainless steel welded wire mesh panels     Stainless steel welded wire mesh panels     Stainless steel welded wire mesh panels     Stainless steel welded wire mesh panels




Dashang Wire Mesh produces and supplies metal welded mesh panels, especially stainless steel welded mesh panels, which has an absolute advantage in raw materials. If you have any needs for welded mesh, please contact us Sales@dswirecloth.com
