PRODUCT DESCRIPTION

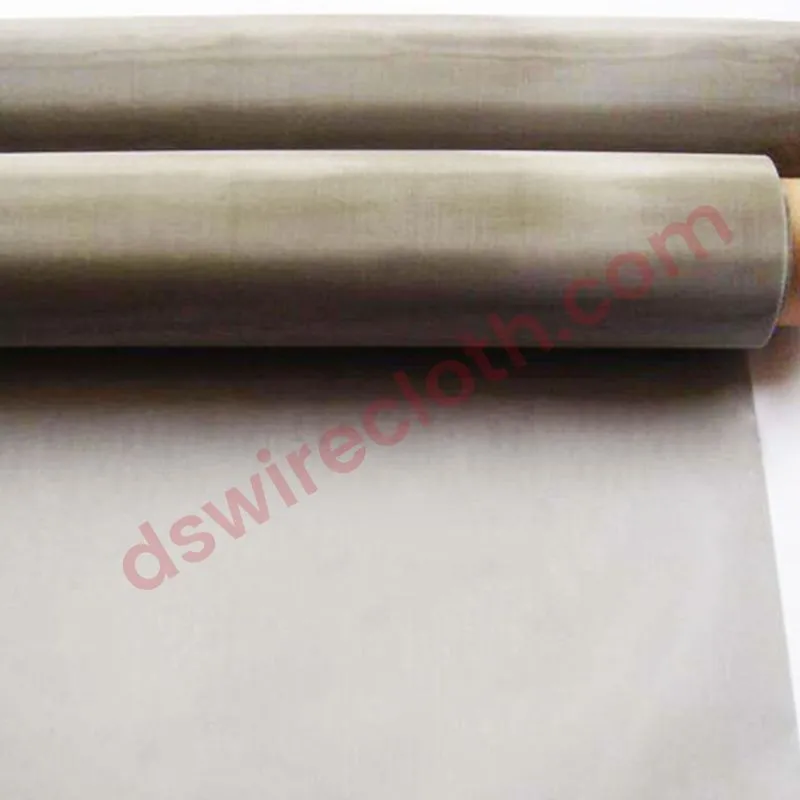

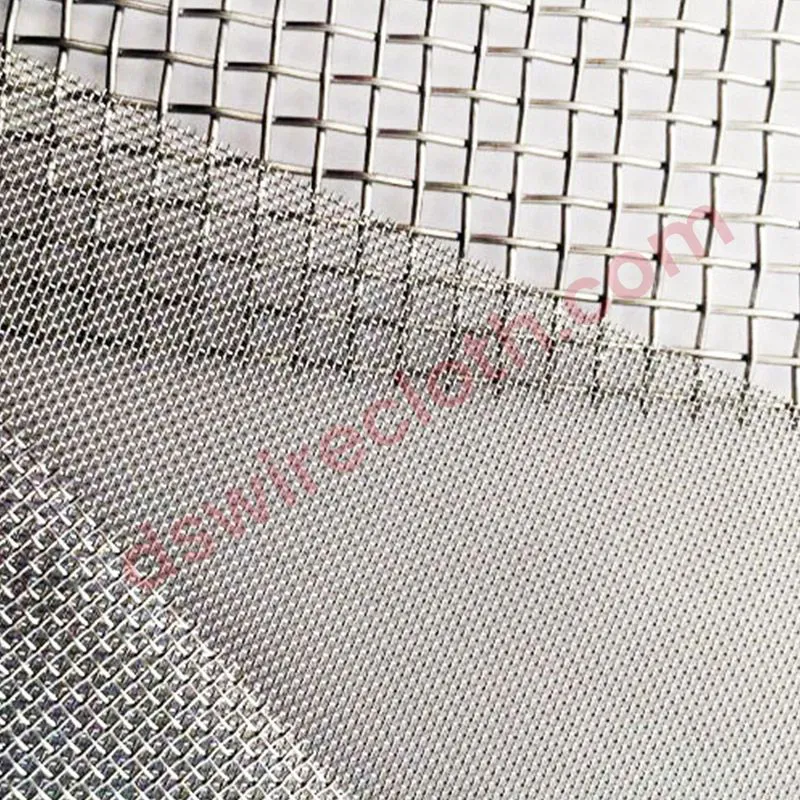

Dashang Wire Mesh provides a full range of stainless steel square mesh with opening size range from 25 microns to 20mm (from mesh1x1 to mesh500x500) according to international standard ASTM E2016 and ISO9044 and ISO4873. It is made of high-quality wire materials of grades 304, 304L, 316, 316L, 321, 430, 317L, 904L, etc., woven by warp and weft direction, with excellent characteristics of acid alkali resistance and corrosion resistance.

Stainless steel square mesh is the most widely used and common woven mesh. The most common and economic weave type is plain weave and twill weave. Plain weave (1/1) is woven by alternating the weft wire over and under the warp wire, and twill weave (2/2) is that each weft wire passes alternately over and under 2 warp wires, staggered on successive warps. Except plain weave (1/1) and twill weave (2/2), Dashang Wire Mesh also could provide special weave type such as 3 heddles weave (1/2) and 5 heddle weave (1/4), it is used in petroleum and chemical industrial filtration and offers high flow rates.

Stainless Steel Bolting Cloth is also a square mesh that uses smaller wire diameters to provide a high percentage of open area. Since the cloth generally belongs to the fine wire cloth, it is widely used in screen printing and fine particle screening, used in printing, plate making in electronics, textile, ceramics, glass and other industries, and filtration in high-tech fields such as aviation, aerospace, petrochemical, etc.

Stainless steel square mesh inventory specifications

Mesh No.	Opening Size		Wire Diameter		Open Area	Roll Width Max
Mesh No.	inch	mm	inch	mm	%	mm
1×1	0.8400	21.4	0.1575	4.000	71.0	2000
2×2	0.3800	10.2	0.0984	2.500	64.5	2000
3×3	0.2500	6.4	0.0787	2.000	58.0	2000
4×4	0.1870	4.75	0.0630	1.600	56.0	2000
4×4	0.2030	5.15	0.0472	1.200	65.8	2000
5×5	0.1606	4.08	0.0394	1.000	64.5	2000
6×6	0.1200	3.03	0.0472	1.200	51.3	2000
6×6	1.1200	3.343	0.0350	0.890	62.4	2000
8×8	2.1200	2.465	0.0280	0.710	60.3	2000
10×10	0.0600	1.54	0.0394	1.000	36.8	2000
10×10	0.0800	2.03	0.0201	0.510	63.9	2000
12×12	0.0600	1.52	0.0230	0.584	52.2	2000
12×12	0.0630	1.6	0.0200	0.508	57.6	2000
14×14	0.0480	1.22	0.0230	0.584	45.7	2000
14×14	0.0510	1.3	0.0200	0.508	51.7	2000
16×16	0.0445	1.13	0.0180	0.457	50.7	2000
18×18	0.0386	0.98	0.0170	0.432	48.2	2000
20×20	0.0300	0.76	0.0200	0.508	35.9	2000
20×20	0.0340	0.86	0.0160	0.406	46.1	2000
24×24	0.0277	0.7	0.0140	0.356	43.9	2000
30×30	0.0203	0.52	0.0130	0.330	37.4	2000
30×30	0.0213	0.54	0.0120	0.305	40.8	2000
30×30	0.0243	0.62	0.0090	0.229	53.3	2000
35×35	0.0176	0.45	0.0110	0.279	38.1	2000
40×40	0.0150	0.38	0.0100	0.254	35.9	2000
50×50	0.0110	0.28	0.0090	0.229	30.3	2000
50×50	0.0120	0.31	0.0080	0.203	36.5	2000
60×60	0.0092	0.23	0.0075	0.191	29.8	2000
60×60	0.0097	0.25	0.0070	0.178	34.1	2000
70×70	0.0078	0.2	0.0065	0.165	30.0	2000
80×80	0.0070	0.18	0.0055	0.140	31.6	2000
80×80	0.0077	0.197	0.0047	0.120	38.6	2000
90×90	0.0061	0.16	0.0050	0.127	31.1	2000
100×100	0.0055	0.14	0.0045	0.114	30.4	2000
100×100	0.0060	0.15	0.0040	0.102	35.4	2000
100×100	0.0065	0.17	0.0035	0.089	43.1	2000
110×110	0.0051	0.1295	0.0040	0.102	31.4	2000
120×120	0.0046	0.1168	0.0037	0.094	30.7	2000
150×150	0.0041	0.1041	0.0024	0.060	40.2	2000
160×160	0.0038	0.0965	0.0025	0.064	36.4	1530
180×180	0.0033	0.0838	0.0023	0.058	34.7	1530
200×200	0.0029	0.0737	0.0021	0.053	33.7	1530
250×250	0.0024	0.061	0.0016	0.040	36.5	1530
270×270	0.0021	0.054	0.0016	0.040	33.0	1530
300×300	0.0018	0.0446	0.0016	0.040	27.8	1530
325×325	0.0017	0.0432	0.0014	0.036	30.1	1530
400×400	0.0015	0.033	0.0012	0.030	27.4	1530
500×500	0.0010	0.0254	0.0010	0.025	25.0	1530
635×635	0.0008	0.0203	0.0008	0.020	25.0	1300

Bolting Cloth

Mesh No.	Wire Diameter		Opening Size		Open Area	Roll Width Max
Mesh No.	inch	mm	inch	mm	%	mm
16×16	0.009	0.229	0.0535	1.36	73.3	1600
18×18	0.009	0.229	0.0466	1.18	70.1	1600
24×24	0.0075	0.191	0.0342	0.869	67.2	1600
28×28	0.0075	0.191	0.0282	0.716	62.3	1600
30×30	0.0065	0.165	0.0268	0.681	64.8	1600
36×36	0.0065	0.165	0.0213	0.541	58.7	1600
40×40	0.0065	0.165	0.0185	0.47	54.8	1600
50×50	0.0055	0.127	0.0145	0.368	55.3	1600
60×60	0.0045	0.114	0.0122	0.31	53.5	1600
70×70	0.0037	0.094	0.0106	0.269	54.9	1600
76×76	0.0037	0.094	0.0095	0.241	51.8	1600
80×80	0.0037	0.094	0.0088	0.224	49.6	1600
90×90	0.0035	0.089	0.0076	0.193	46.8	1600
94×94	0.0035	0.089	0.0071	0.18	44.8	1600
105×105	0.003	0.076	0.0065	0.165	46.9	1600
120×120	0.0025	0.064	0.0058	0.147	48.5	1600
130×130	0.0017	0.043	0.0059	0.152	60.8	1600
160×160	0.0014	0.036	0.0048	0.123	59.8	1600
180×180	0.0012	0.03	0.0028	0.205	76.1	1600
200×200	0.0016	0.04	0.0034	0.0864	46.7	1600
230×230	0.0014	0.0356	0.0029	0.0737	45.5	1600
250×250	0.0012	0.03	0.0028	0.0716	49.7	1600
325×325	0.0012	0.03	0.0028	0.048	37.9	1600
400×400	0.0009	0.022	0.0016	0.0415	42.7	1600

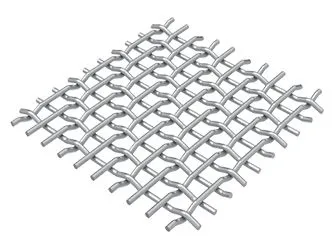

Screening of petrochemical products, quartz sand, ceramics, resin coated sand, etc
Production of plastic film and plastic packaging filtration;
Production of plastic film and plastic packaging filtration;
Screening of chemical product powders such as pharmaceuticals, emery, metal powders, etc

Characteristic:

Stainless steel contains chromium (Cr), nickel (Ni), and molybdenum(Mo) elements, which make it highly chemically stable. It will not be oxidized, rusted or corroded in air, water, seawater or acid, alkali, salt and other aqueous solutions. Therefore, the stainless steel mesh woven by stainless steel wire has the characteristics of acid resistance, alkali resistance, high temperature resistance, tensile strength and wear resistance, and is especially suitable for screening and filtering under acid and alkali environmental conditions. Such as mud net in petroleum industry, sieve filter net in chemical fiber industry, pickling net in electroplating industry, as well as metallurgy, rubber, aerospace, military industry, medicine, food and other industries, gas, liquid filtration and other media separation.

Production and Inspection Standards:

The Quality of the stainless steel wire must conform to the technical requirements and testing of the standard ASTM A580, and the quality of the stainless steel wire mesh must conform to the technical requirements and testing of the standard ISO9044 and ASTM E2016. For more information, please consult us sales@dashangmesh.com about the quality control system and inspection standard description
Packing:

All overall wire mesh are packed with waterproof paper and polyethylene film, and then put into a fumigation-free wooden box. Packaging methods should take into account the possibility of wire mesh corrosion or mechanical damage. Any special packaging should be noted and agreed by the seller. For more information please consult us sales@dashangmesh.com on packaging systems
Ordering Information:

√ The quantity required;
√ Aperture width;
√ Wire diameter;
√ Material;
√ Type of weave;
√ The overall size including special quality requirement.
