PRODUCT DESCRIPTION

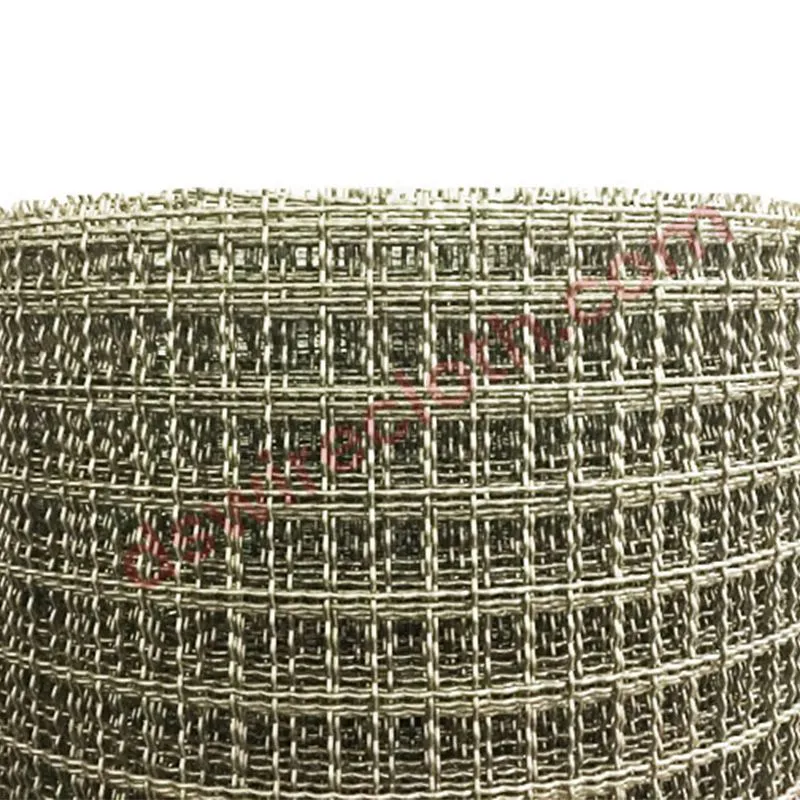

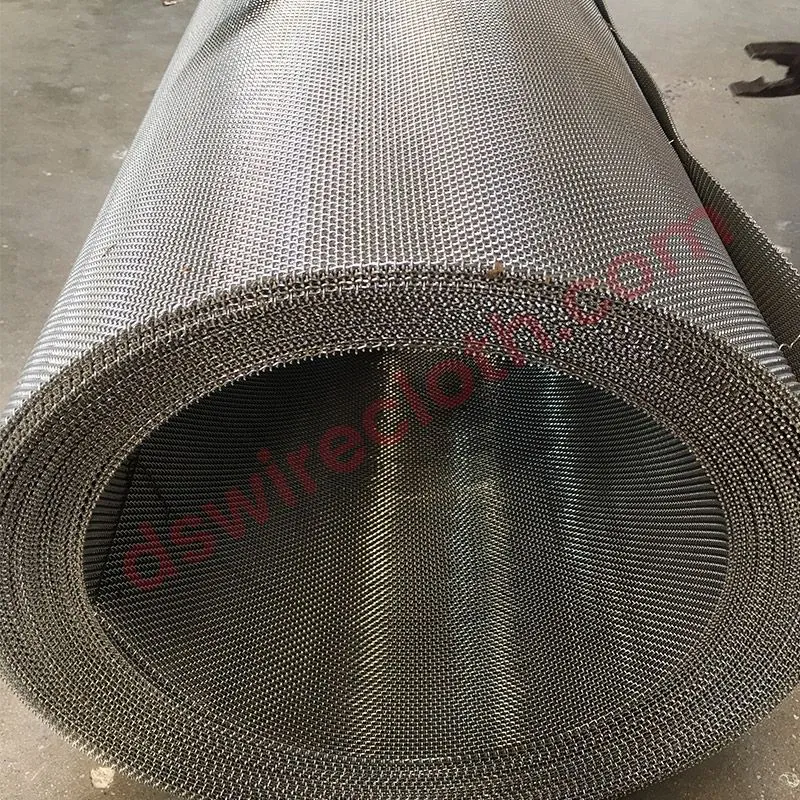

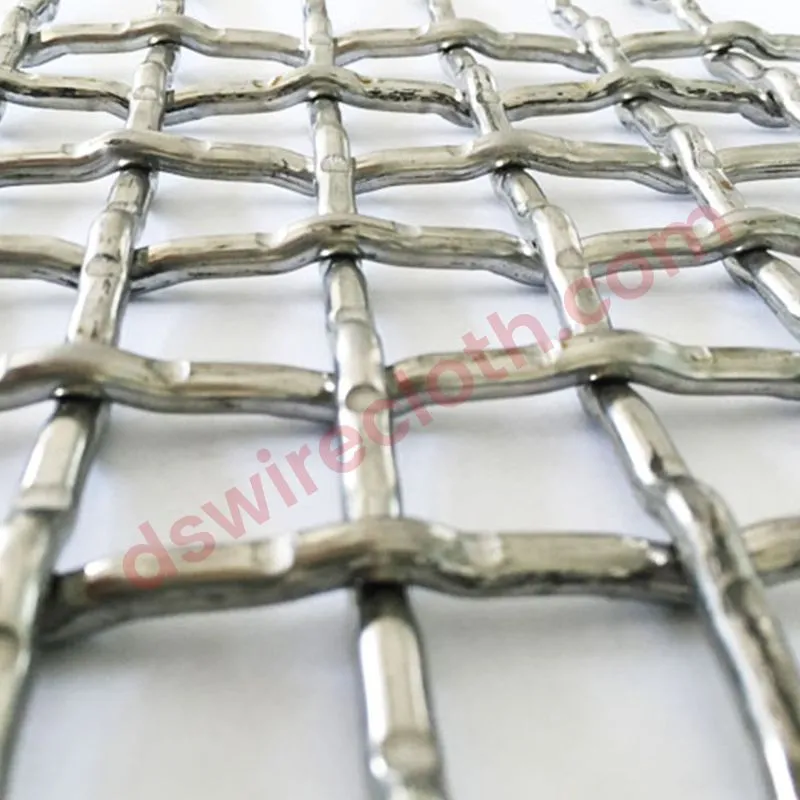

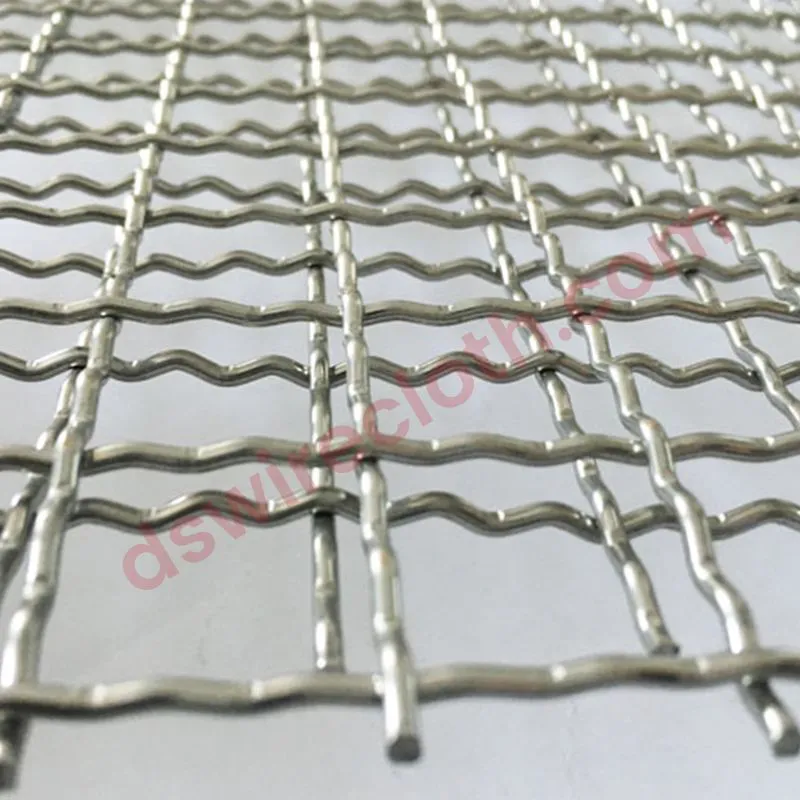

Dashang Wire Mesh provides stainless steel pre-crimp mesh, also known as crimped weave mesh or space cloth. It is weave by prior crimped wire materials of grades 304, 304L, 316, 316L, 321, etc. with excellent characteristics of strength and stability. The crimps are made at the points where the weft and warp wires meet to secure the wire, thereby stabilizing the wire mesh and preventing the moving.Generally it has 4 types of weaving : Double crimp mesh, Flat top crimp mesh, Intermediate crimp mesh and Lock crimp mesh.

Pre-crimped mesh is used in the waste water, mining, construction, security and food processing industries for applications requiring strength and large pore filtration and screening. Pre-crimped mesh is also used in architectural design applications.

Stainless steel pre-crimp mesh specifications

Mesh	Opening Size		Wire Diameter		Open Area
Mesh	inch	mm	inch	mm	(%)
2"	1.884	47.86	0.116	2.94	88.76
2"	1.865	47.38	0.135	3.42	86.99
2"	1.841	46.76	0.159	4.04	84.73
2"	1.788	45.42	0.212	5.38	79.94
1 1/2"	1.396	35.46	0.104	2.64	86.62
1 1/2"	1.365	34.68	0.135	3.42	82.85
1 1/2"	1.341	34.06	0.159	4.04	79.92
1×1	0.92	23.37	0.08	2.03	84.65
1×1	0.884	22.46	0.116	2.94	78.19
1×1	0.865	21.98	0.135	3.42	74.88
2×2	0.453	11.51	0.047	1.19	82.14
2×2	0.428	10.87	0.072	1.83	73.26
2×2	0.396	10.06	0.104	2.64	62.75
2×2	0.38	9.65	0.12	3.05	57.74
3×3	0.279	7.1	0.054	1.37	70.26
3×3	0.261	6.64	0.072	1.83	61.44
3×3	0.253	6.44	0.08	2.03	57.8
4×4	0.222	5.64	0.028	0.71	78.89
4×4	0.203	5.16	0.047	1.19	66.03
4×4	0.187	4.75	0.063	1.6	55.96
4×4	0.17	4.32	0.08	2.03	46.28
5×5	0.165	4.19	0.035	0.89	68.03
5×5	0.153	3.89	0.047	1.19	58.64
5×5	0.137	3.48	0.063	1.6	46.93
6×6	0.132	3.34	0.035	0.89	62.37
6×6	0.126	3.19	0.041	1.04	56.9
6×6	0.12	3.04	0.047	1.19	51.68
6×6	0.104	2.63	0.063	1.6	38.69
8×8	0.108	2.75	0.017	0.43	74.75
8×8	0.097	2.47	0.028	0.71	60.28
8×8	0.09	2.29	0.035	0.89	51.79
8×8	0.078	1.99	0.047	1.19	39.09
10×10	0.083	2.11	0.017	0.43	69.01
10×10	0.075	1.91	0.025	0.635	56.25
10×10	0.068	1.73	0.032	0.813	46.23
10×10	0.053	1.35	0.047	1.19	28.25
12×12	0.066	1.69	0.017	0.43	63.5
12×12	0.06	1.54	0.023	0.58	52.71
12×12	0.055	1.41	0.028	0.71	44.16
12×12	0.048	1.23	0.035	0.89	33.59
14×14	0.056	1.43	0.015	0.38	62.5
14×14	0.052	1.31	0.02	0.5	52.48
14×14	0.043	1.1	0.028	0.71	37.05
16×16	0.048	1.21	0.015	0.38	57.86
16×16	0.045	1.14	0.018	0.45	51.34
16×16	0.04	1.01	0.023	0.58	40.28
16×16	0.035	0.88	0.028	0.71	30.55
18×18	0.042	1.06	0.014	0.35	56.55
18×18	0.039	0.98	0.017	0.43	48.34
18×18	0.036	0.91	0.02	0.5	41.69
18×18	0.033	0.83	0.023	0.58	34.69
20×20	0.036	0.92	0.014	0.35	52.48
20×20	0.033	0.84	0.017	0.43	43.75
20×20	0.03	0.77	0.02	0.5	36.76
20×20	0.027	0.69	0.023	0.58	29.52

Production and Inspection Standards:

The Quality of the stainless steel wire must conform to the technical requirements and testing of the standard ASTM A580, and the quality of the stainless steel wire mesh must conform to the technical requirements and testing of the standard ISO9044 and ASTM E2016. For more information, please consult us sales@dashangmesh.com about the quality control system and inspection standard description
Packing:

All overall wire mesh are packed with waterproof paper and polyethylene film, and then put into a fumigation-free wooden box. Packaging methods should take into account the possibility of wire mesh corrosion or mechanical damage. Any special packaging should be noted and agreed by the seller. For more information please consult us sales@dashangmesh.com on packaging systems
Ordering Information:

√ The quantity required;
√ Aperture width;
√ Wire diameter;
√ Material;
√ Type of weave;
√ The overall size including special quality requirement.

ASTM A580

ASTM E2016
