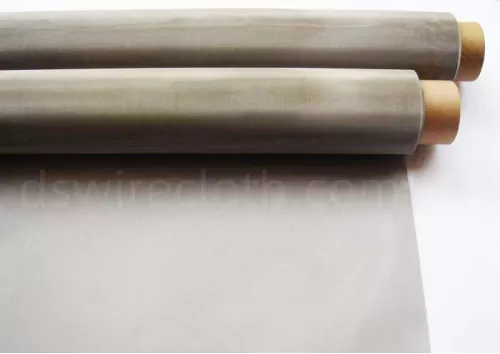

Custom Stainless steel bolting cloth mesh

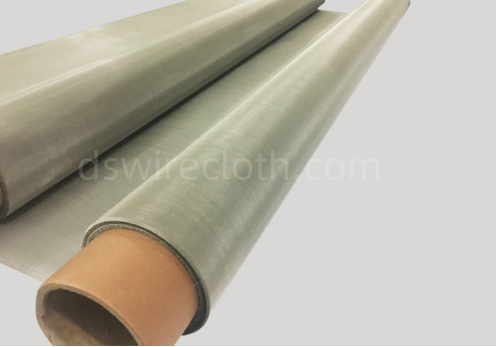

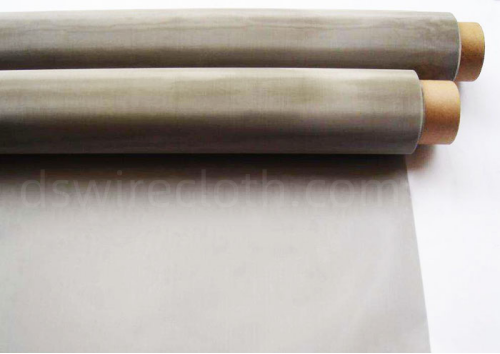

Stainless steel bolting cloth mesh

Stainless Steel Bolting Cloth is also a square mesh that uses smaller wire diameters to provide a high percentage of open area. Since the cloth generally belongs to the fine wire cloth, it is widely used in fine particle screening, used in printing, plate making in electronics, textile, ceramics, glass and other industries, and filtration in high-tech fields such as aviation, aerospace, petrochemical, etc.

PRODUCT DESCRIPTION

Stainless Steel Bolting Cloth, also known as tensile bolting cloth, or TBC, this material features a square weave that is achieved via the implementation of plain weaving technology. This ensures that the finished product exhibits the desired thin structure and high permeation. The mesh also consists of a smooth, flat surface without the presence of joint knots.

Bolting Cloth features a larger usable open area, achieved by using a thinner diameter wire compared to commercial-grade stainless steel mesh, making it ideal for applications requiring increased throughput. However, the trade-off is a reduced lifespan due to the thinner wire diameter.

Stainless Steel Bolting Cloth, is commonly used for high volume sieving, screening & sifting applications where strength is required. Bolting Cloth’s slightly textured and durable mesh enhances the bolting action, thereby increasing the capacity of screening machines.

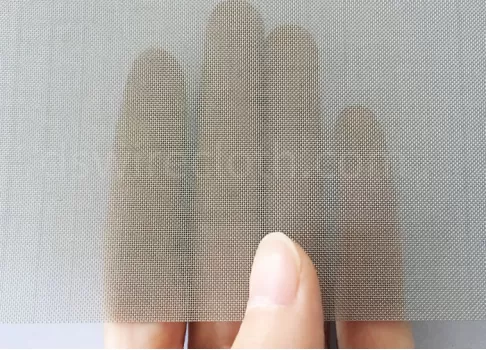

Stainless steel bolting cloth mesh

Bolting Cloth Specifications:

Mesh No.	Wire Diameter		Opening Size		Open Area	Roll Width Max
Mesh No.	inch	mm	inch	mm	%	mm
16×16	0.009	0.229	0.0535	1.36	73.3	1600
18×18	0.009	0.229	0.0466	1.18	70.1	1600
24×24	0.0075	0.191	0.0342	0.869	67.2	1600
28×28	0.0075	0.191	0.0282	0.716	62.3	1600
30×30	0.0065	0.165	0.0268	0.681	64.8	1600
36×36	0.0065	0.165	0.0213	0.541	58.7	1600
40×40	0.0065	0.165	0.0185	0.47	54.8	1600
50×50	0.0055	0.127	0.0145	0.368	55.3	1600
60×60	0.0045	0.114	0.0122	0.31	53.5	1600
70×70	0.0037	0.094	0.0106	0.269	54.9	1600
76×76	0.0037	0.094	0.0095	0.241	51.8	1600
80×80	0.0037	0.094	0.0088	0.224	49.6	1600
90×90	0.0035	0.089	0.0076	0.193	46.8	1600
94×94	0.0035	0.089	0.0071	0.18	44.8	1600
105×105	0.003	0.076	0.0065	0.165	46.9	1600
120×120	0.0025	0.064	0.0058	0.147	48.5	1600
130×130	0.0017	0.043	0.0059	0.152	60.8	1600
160×160	0.0014	0.036	0.0048	0.123	59.8	1600
180×180	0.0012	0.03	0.0028	0.205	76.1	1600
200×200	0.0016	0.04	0.0034	0.0864	46.7	1600
230×230	0.0014	0.0356	0.0029	0.0737	45.5	1600
250×250	0.0012	0.03	0.0028	0.0716	49.7	1600
325×325	0.0012	0.03	0.0028	0.048	37.9	1600
400×400	0.0009	0.022	0.0016	0.0415	42.7	1600
*Oblong mesh*
Mesh No.	Wire Diameter		Roll Width		Roll Length
Mesh No.	inch	mm	inch	mm	foot	mt
76x46	0.0031	0.080	48.0	1220	100.0	30.5
59x115	0.0026	0.066	50.0	1270	100.0	30.5
60x40	0.0039	0.100	48.0	1220	100.0	30.5
69x140	0.0022	0.056	50.0	1270	100.0	30.5
84x170	0.0019	0.048	50.0	1270	100.0	30.5
95x196	0.0016	0.041	50.0	1270	100.0	30.5
100x60	0.0024	0.060	48.0	1220	100.0	30.5
108x229	0.0014	0.036	50.0	1270	100.0	30.5
140x90	0.0020	0.050	48.0	1220	100.0	30.5
120x76	0.0024	0.060	48.0	1220	100.0	30.5
160x90	0.0024	0.060	48.0	1220	100.0	30.5
180x100	0.0020	0.050	48.0	1220	100.0	30.5
200x100	0.0020	0.050	48.0	1220	100.0	30.5
220x110	0.0016	0.040	48.0	1220	100.0	30.5
230x110	0.0016	0.040	48.0	1220	100.0	30.5
Mesh No.	Wire Diameter		Roll Width		Roll Length
Mesh No.	inch	mm	inch	mm	foot	mt
240x150	0.0014	0.035	48.0	1220	100.0	30.5
260x130	0.0016	0.040	48.0	1220	100.0	30.5
280x180	0.0014	0.035	48.0	1220	100.0	30.5
325x184	0.0012	0.030	48.0	1220	100.0	30.5

Bolting Cloth Applications:

Bolting cloth products have numerous industrial applications entailing a combination of superior strength and exceptionally high capacity. Because of its smaller, finer wire diameters, it yields a comparatively light material with a higher percentage of open areas, making it suitable for various sifting and screen printing processes. Examples of the many industries that use bolting cloth products include:

Aerospace

Petroleum

Chemical manufacturing

Environmental protection

Mining

Electronics

Metallurgy

Paper manufacturing

Stainless steel bolting cloth used in Shale shaker screen panels:

Stainless steel bolting cloth mesh

Shale shaker screen panel is a kind of mesh screen installed in shale shakes for filtering and separating drilling cuttings from drilling fluid. Of which, wire cloth is the most important part of the shale shake screen as it is actually what separates liquids from solids and determines the screening efficiency of the shale shaker screen. We offer a full range of stainless steel bolting cloth including both square mesh and oblong mesh to satisfy your specific requirements for sieving & screening.

Dashang Wire Mesh selects raw materials from designated stainless steel factories and performs spectral analysis and other testing methods on each batch of raw materials. Weaving is carried out using a fully controlled loom to ensure the accuracy of the mesh count. At the same time, Dashang Wire Mesh has also introduced various advanced testing instruments, such as tensile testing machines, mesh analyzers, etc., to ensure that the woven mesh meets or even exceeds industry standards. Dashang Wire Mesh has passed ISO9001 international quality management system certification and continues to receive favorable comments from users in the domestic and international filtration and screening markets. If you need stainless steel bolting cloht mesh, please contact us as soon as possible! sales@dswirecloth.com
