PRODUCT DESCRIPTION

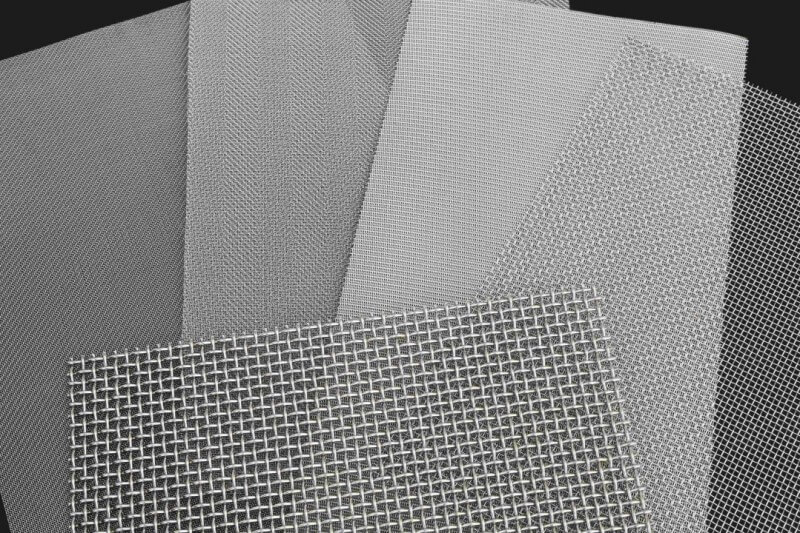

Nickel Woven Wire Mesh

Nickel Woven Wire Mesh

Pure nickel woven mesh is made of high-purity nickel wire (Ni 200/201) with a precision weaving process of more than 99.5%. It has excellent corrosion resistance, high-temperature oxidation resistance and excellent conductivity. It is designed for harsh industrial environments and is suitable for high-demand fields such as chemical industry, new energy, aerospace, etc.

The mesh size of nickel wire woven mesh ranges from 1 mesh to 400 mesh. The mesh is usually square with different apertures and widths. Dashan Wire Mesh can adjust the wire diameter, mesh number, width and weaving method according to requirements to meet various industrial needs of customers. Common mesh sizes of nickel wire filters include 40 mesh/0.15 mm, 60 mesh/0.12 mm, 80 mesh/0.10 mm, etc. Dashan Wire Mesh can provide deep processing services such as punching, rolling mesh, welding and edging. Common nickel wire mesh models are as follows:

Mesh Size (mm)	Wire Diameter (mm)	Mesh Count	Width (mm)	Weave Type
0.485	0.15	40	700–2000	Square opening plain weave
0.546	0.16	36	700–2000	Square opening plain weave
0.491	0.16	39	700–2000	Square opening plain weave
0.475	0.16	40	700–2000	Square opening plain weave
0.455	0.18	40	700–2000	Square opening plain weave
0.445	0.19	40	700–2000	Square opening plain weave
0.362	0.19	46	700–2000	Square opening plain weave
0.173	0.25	60	700–2000	Square opening twill weave
0.385	0.25	40	700–2000	Square opening twill weave

chemical composition of main type of nickel
Type	Ni + Co	Cu	Si	Mn	C	Mg	S	Fe	Impurity Sum
Type	Min.	Max.
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.04	0.1
N6	99.5	0.03	0.1	0.05	0.1	0.1	0.005	0.1	0.5

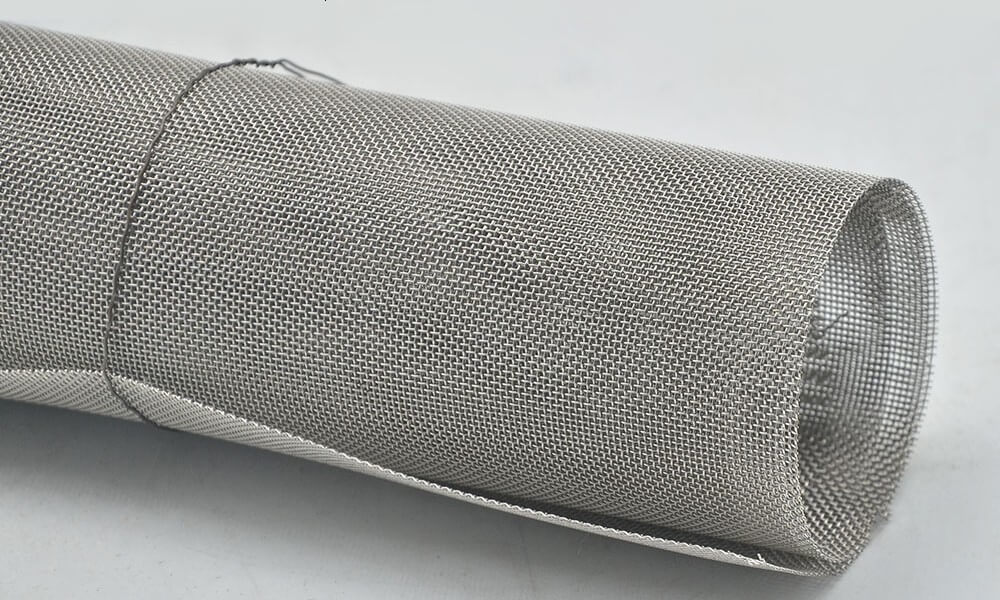

Nickel Woven Wire Mesh

Typical application scenarios

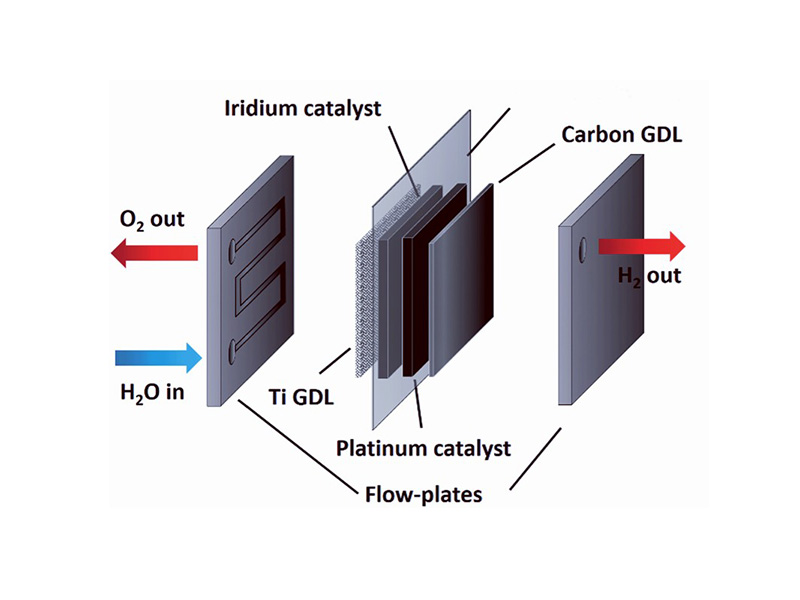

- New energy batteries: lithium battery current collector, fuel cell gas diffusion layer

- Chemical filtration: acid and alkaline solution filtration, catalyst carrier, corrosive medium screening

- Aerospace: high temperature gas filtration, sensor protection net

- Electronic industry: EMI/RFI electromagnetic shielding, conductive pads

- Laboratory equipment: high temperature reactor lining, precision experimental screen

- Environmental protection field: seawater desalination filter, exhaust gas treatment system

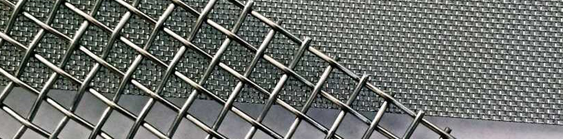

Nickel Woven Wire Mesh

Nickel wire filter has become an important filter material in many industries due to its unique material and process. Correct selection, use and maintenance are the key to ensure its filtering effect and extend its service life. In the future, with the advancement of science and technology, the application of nickel wire filters will be more extensive and the performance will be more superior. Dashang Wire Mesh promises that the technical requirements and inspections of pure nickel wire mesh weaving comply with the ISO90001 management system, provide material Chenfen report (MTC) or third-party testing and certification, and can also conduct relevant physical properties and precision testing before leaving the factory according to customer requirements.
