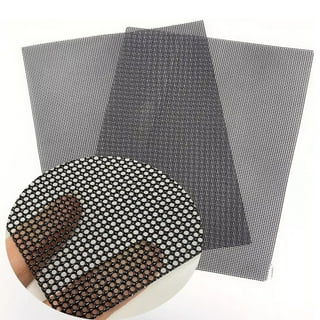

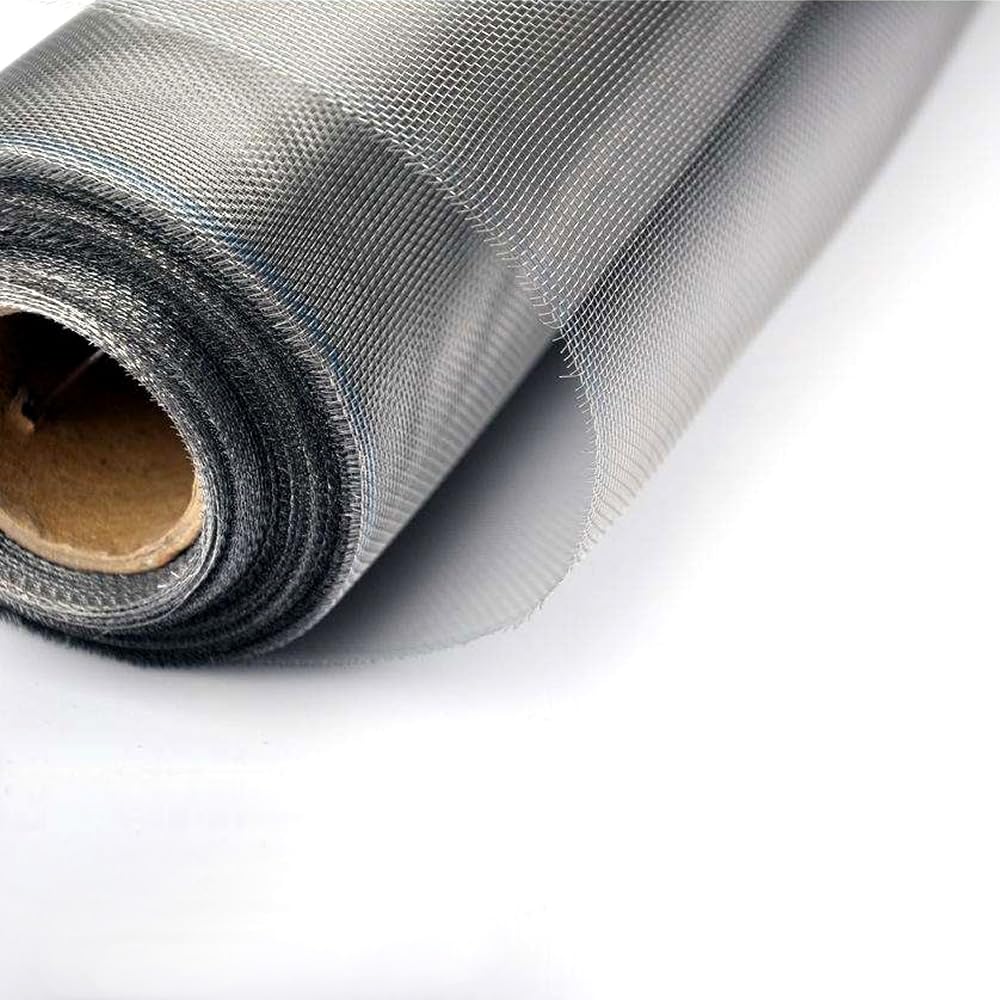

High-transmittance stainless steel window screen

High-transmittance stainless steel window screen is a revolutionary product in the window screen field in recent years. It breaks through the limitation of low light transmittance of traditional metal screen through ultra-fine wire diameter + precision weaving technology, while retaining the core advantages of stainless steel such as high strength, corrosion resistance and long life, becoming an ideal choice for high-end buildings, precision places and home aesthetics.



High-transmittance stainless steel window screen has ultra-high light transmittance

parameter

High transparency stainless steel mesh

Traditional stainless steel mesh (20 mesh)

Nylon mesh

Wire diameter

0.08-0.15mm

0.3-0.4mm

0.2-0.3mm

Aperture

0.4-0.6mm

0.9mm

1.0-1.2mm

Light transmittance

≥ 7 5%

≤60%

≤70%

Visual Effects

Almost invisible, no screen at all from a distance

Obvious sense of grid

Slight mist feeling



Micro-drawing technology: 316L stainless steel is cold-drawn to 1/3 the thickness of a human hair (0.08mm), while maintaining a strength of ≥500MPa.

Low shading rate weaving: plain weave structure is adopted to reduce the metal shading area by more than 50%.



High permeability stainless steel window screen has extreme physical properties

Tensile strength: ≥500 MPa (10 times that of nylon mesh)

Weather resistance:

- Salt spray resistance test > 1000 hours (lifespan in coastal areas > 15 years)

- UV aging resistant, no performance degradation at -30℃~150℃

Fire protection grade: A1 non-combustible material (certified by GB 8624)

Anti-dust and pollen: pore size ≤ 0.6mm, can block PM50 particles (the average particle size of tree pollen is 60μm).

Ultra-fine insect repellent: can intercept tiny pests such as midges (0.5mm) and fruit flies (1mm).

Easy to clean: The surface is mirror polished (Ra≤0.5μm), dust will fall off easily and it is not stained with oil.



Application scenarios of high permeability stainless steel window screen

1. High-end panoramic curtain wall building

- Demand pain points: Large glass landscape windows need to be highly light-transmitting and insect-proof, and traditional screens block the view.

- Solution:

- Use 0.08mm wire diameter + 30 mesh gauze, light transmittance > 88%.

- Customized champagne gold/matte black PVDF coating, the same color as the building facade.

Case: The apartment floor of Shanghai Tower has a 10-meter-high glass curtain wall with a high-transparency mesh, which gives an unobstructed view from a distance.



2. Precision electronics/laboratory sites

- Demand pain points: high requirements for dust and insect protection, and organic materials are prohibited (anti-static).

- Solution:

- 316LVM medical grade stainless steel (vacuum melting), ion precipitation <0.1ppb.

- Aperture 0.4mm (40 mesh), blocking dust with particle size > 400μm.

Case: Shenzhen chip clean room, high-transparency gauze is integrated in the FFU air intake system.



3. High-end home and medical space

- Demand pain points:

- Hospitals need to be mosquito-proof + antibacterial + light-transmitting (ultraviolet disinfection required).

- The villa requires both landscape view and protection.

- Solution:

- Antibacterial coating: The mesh surface is plated with nano-silver (antibacterial rate > 99%).

- Anti-allergic design: intercepts pollen (allergens), UV transmittance > 80%.

Case: Sanya Yanlord Haitang Bay Villa, the screen has a light transmittance of 85% and can withstand a level 12 typhoon.



High permeability stainless steel window screen selection technical parameter guide

parameter

Civilian mosquito repellent

Pollen-proof

Super strong protection

Recommended wire diameter

0.1 2 mm ~0.15

0.0 9 mm

0.3 mm

Mesh number/aperture

22 mesh ( 1 mm)

24 mesh ( 1 mm)

18 mesh ( 1.1 mm)

Light transmittance

75 ~ 80 %

80% -85 %

60 % -70 %

tensile strength

480-520MPa

450-500MPa

550-600MPa

Applicable scenarios

Residential, hotel

Allergy patients/hospitals

Typhoon area/anti-theft needs



Key points for installation and maintenance of high-permeability stainless steel window screens

1. Tensioning system:

- A constant force spring tensioner (error < 5%) must be used to avoid the ultra-fine mesh from loosening and deforming.

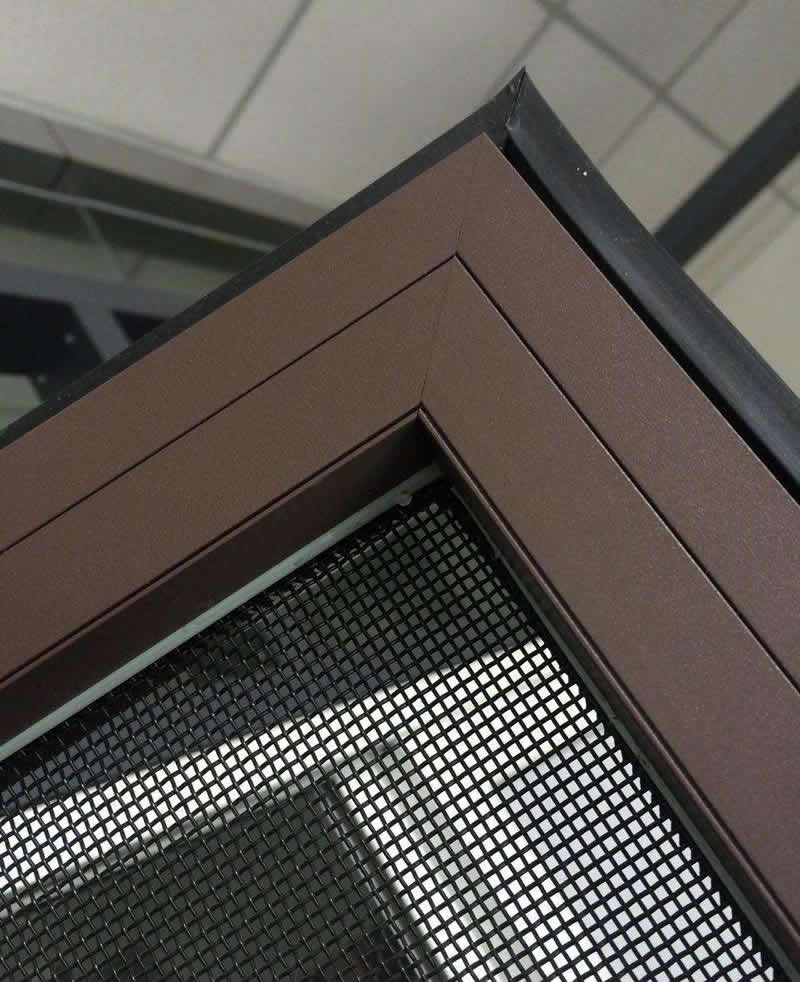

2. Frame sealing:

- Siliconized sealing strips are used to fill the gaps in the frame to prevent mosquitoes from drilling sideways (gap ≤ 0.3mm).

3. Cleaning regulations:

- Water washing: low-pressure water flow + soft brush (no high-pressure water gun direct flushing).

- Dry cleaning: Vacuum on low setting (once a month).

- Chemical prohibition: Acidic cleaners will destroy the passivation film.



High-transmittance stainless steel window screens redefine the high-end building protection standards with their "invisible vision, steel protection" performance . When selecting, you need to pay attention to the three hard indicators of wire diameter (≤0.15mm), light transmittance (≥80%), and tensile strength (450MPa), and match it with professional installation to release its maximum efficiency.

High-transmittance stainless steel window screen        High-transmittance stainless steel window screen        High-transmittance stainless steel window screen          High-transmittance stainless steel window screen

Need a Custom Solution?

Dashang Wire Mesh has established a standard process for drawing and annealing wires, weaving mesh production and deeper processing, and inspection.
