High Flow filter weave

 is a high-performance precision metal filter cloth designed to maximize throughput while maintaining fine filtration. It is widely used in industrial applications requiring high-volume processing with minimal contamination levels.

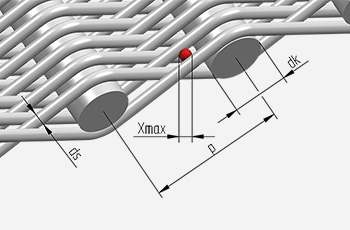

Weave Structure: Typically utilizes very fine wires in a specialized plain weave pattern.

Pore Density: Features a significantly high number of pores per unit area, enabling extreme throughput rates even with small pore sizes (down to ~15 µm).

Surface Filtration: It acts as a surface filter, where the distance between weft wires determines the smallest particle retained, rather than depth-based pores.

Flow Dynamics: Optimized for low pressure loss, which enhances energy efficiency in pumping systems.

Durability: Provides high mechanical strength and temperature resistance, making it suitable for harsh environments.

Maintenance: Designed for easy cleaning and back-flushing, similar to standard Dutch weaves.

Specific Applications

High flow weaves are specifically applied where high throughput rates and low contamination are prioritized:

Aerospace & Automotive: Used as absolute filters in lubrication circuits and fuel systems to protect sensitive components.

Industrial Air Filtration: Ideal for filtering large volumes of air with minimal particulates.

Energy & Power: Applied in gas turbines and as bacteria filters in specialized ventilation.

Water Treatment: Used in municipal and industrial water purification to handle large volumes while meeting environmental standards.

Chemical & Oil/Gas: Critical for processing large-scale liquid or gas flows in refineries and chemical plants.
