Feb. 05, 2026

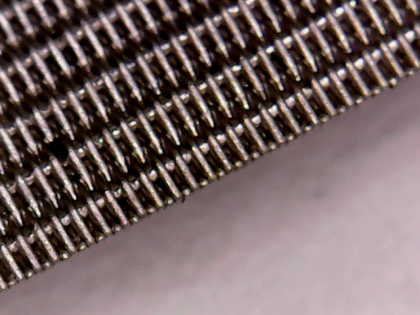

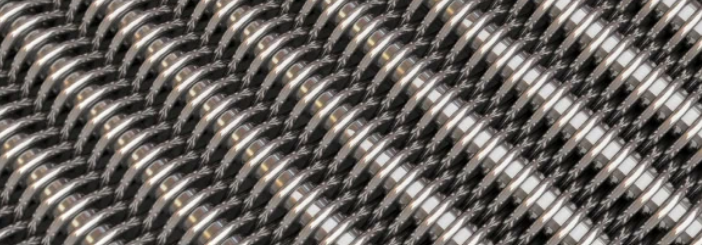

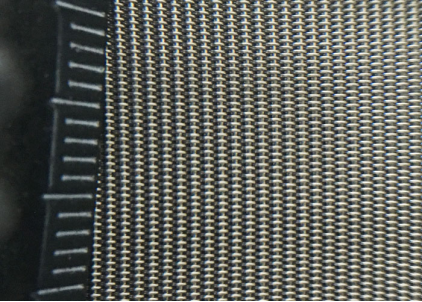

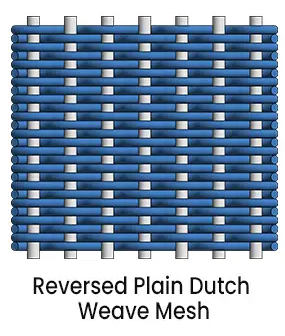

Reverse Plain Dutch Weave (RPDW):
Reverses the wire sizes; features thin warp wires and thick weft wires.
Advantage: Coarse wires in weft (flow direction), fine in warp (filter direction); excellent flow, resists blinding, good filter cake, easy backwashing.Higher active filtration cross-section and better contaminant retention than standard PDW.
Disadvantage: Weft wires can deform under extreme pressure; less strength in flow direction than twill.
Code | Mesh Count | Wire Diam Warp/ mm | Wire Diam. Weft/ mm | Weave Type | Nominal Micron | Thickness /mm |
RPD14 | 625x134 | 0.04 | 0.13 | RPDW | 14 | 0.21 |
RPD25 | 625x104 | 0.04 | 0.15 | RPDW | 25 | 0.23 |
RPD50 | 290x60 | 0.09 | 0.23 | RPDW | 50 | 0.41 |
RPD60 | 175x50 | 0.15 | 0.3 | RPDW | 60 | 0.62 |
RPD80 | 130x35 | 0.2 | 0.4 | RPDW | 80 | 0.80 |
RPD100 | 130x30 | 0.2 | 0.45 | RPDW | 100 | 0.85 |
Type | Advantages | Disadvantages | Best Used For |
Plain Dutch (PDW) | High rigidity/strength; easy to clean and backflush; cost-effective. | Limited to micron ratings above ~45µm; triangular pores can be hard to deep-clean. | Slurry/liquid separation; fuel and water treatment. |
Twill Dutch (TDW) | Extreme precision (down to 2µm); very high mechanical stability under pressure. | Higher flow resistance; prone to clogging; poor regenerability. | Critical high-pressure gas/liquid filtration; aerospace. |
Reverse Plain Dutch (RPD) | Highest warp-direction strength; high flow rate; superior contaminant retention. | Pore size is often less consistent than regular Dutch weaves. | Filtration belts; vertical/horizontal pressure leaf filters; centrifuges. |
Reverse Twill Dutch (RTD) | Combines high strength with smooth surface; minimal warp wire distortion; handles high mechanical stress. | Complex manufacturing; may have less stress resistance in certain configurations compared to RPD. | High-pressure polymer filtration; continuous filter screens. |
Thank you for your attention, as always. We hope the information above has been helpful. The next article will introduce information about stainless steel Reverse Twill Dutch Weave (RTDW).
DaShang offers a variety of stainless steel mesh specifications. If you are looking for a specific supplier or have any information about stainless steel mesh, please feel free to contact us!
