Stainless Steel Square Mesh Plain Weave & Twill Weave

Jan. 20, 2026

Stainless Steel Square Mesh Plain Weave

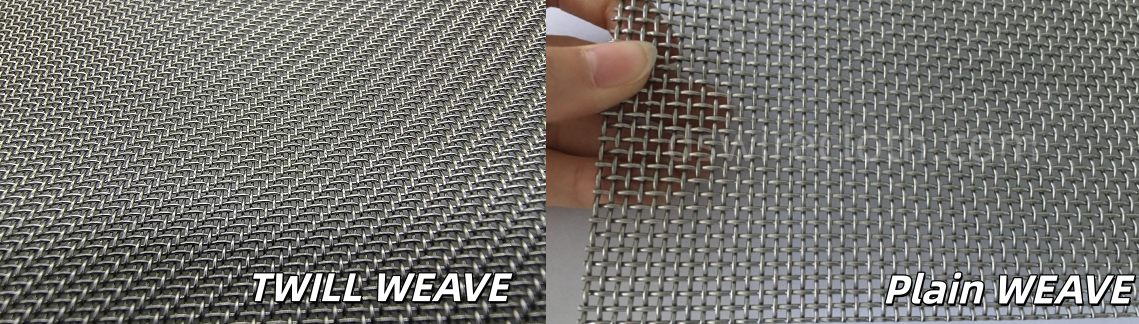

In stainless steel woven wire mesh, plain weave and twill weave are two of the most basic weaving methods. They differ significantly in physical properties, which directly affect their application scenarios.

Simply put, the core difference stems from their weaving structure:

Stainless Steel Square Mesh Plain Weave * **Plain weave:** The warp and weft wires interweave alternately (one over one under), resulting in the tightest and most stable structure.

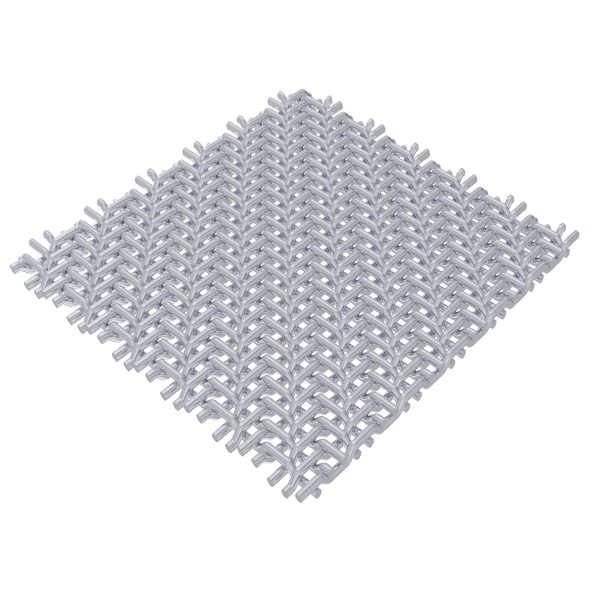

Stainless Steel Square Mesh Plain Weave * **Twill weave:** The warp and weft wires interweave at least every two wires, creating a continuous diagonal pattern on the surface.

Physical Property Comparison

Characteristics	Plain weave	Twill weave
Structure and Stability	The most stable structure, not easily deformed. Numerous warp and weft yarn interlacing points create a strong, locked bond.	The structure is relatively soft, with better plasticity/flexibility. It conforms more easily to irregular surfaces under stress.
Strength and Abrasion Resistance	Excellent abrasion resistance due to numerous interlacing points; high mesh rigidity, preventing yarn displacement. High overall strength.	Abrasion resistance is slightly inferior to plain weave. However, because its yarn diameter can usually be thicker (at the same mesh count), the tensile strength of a single filament may be higher.
Aperture Precision and Stability	The most regular (square) and stable aperture shape, resulting in high and consistent filtration precision. The mesh is not easily altered by stress.	The aperture is also regular, but its stability is slightly lower than plain weave. Minor deformation may occur under high pressure or high impact.
Flowability and Porosity	Tightly interlaced yarns result in a relatively small effective aperture area, leading to greater resistance to fluids or gases and relatively lower flow rate.	Fewer yarn interlacing points result in a larger effective opening area and higher porosity. This leads to better flowability and lower pressure drop.
Surface Smoothness	The mesh surface is flat, but due to its regular "checkerboard" pattern, the surface smoothness is only average.	The presence of long floats makes the mesh surface smoother to the touch, reducing frictional resistance to materials and allowing for smoother material passage.
Mesh Thickness	For the same yarn diameter and mesh count, this mesh is thinner.	Due to typically thicker yarn diameters or structural reasons, the mesh surface is relatively thicker, resulting in a more durable structure.

Plain weave is preferred in the following situations:

1. High-precision screening and filtration: Applications requiring strict control of particle size, such as fine powder screening and high-precision filter screens.

2. Applications requiring extremely high stability and abrasion resistance: Such as vibrating screens, mining screening, and filtration in high-abrasion environments.

3. As a support mesh: Used to support other fine filter media due to its high rigidity and resistance to collapse.

4. Applications requiring high precision in maintaining mesh shape.

Twill weave is preferred in the following situations:

1. High flow rate, low pressure drop filtration: Such as melt filtration and gas filtration in the petrochemical and chemical fiber industries.

2. Applications requiring good flexibility and fit: Such as covering mesh for irregularly shaped filter cartridges and flexible connecting components.

3. Applications requiring smooth material passage: The smooth surface of the twill weave reduces material clogging (soil accumulation) and friction.

4. When higher strength is required at the same mesh size: A thicker wire diameter can be used to achieve this while maintaining good flowability.

Dimensions	Plain weave	Twill weave
Core Advantages	Precision, stability, abrasion resistance	Flow rate, flexibility, smoothness
Comparison	Sturdy checkerboard – regular, rigid, well-locked	Flexible twill fabric – smooth, supple, large openings
Key Selection Criteria	When precision, abrasion resistance, and dimensional stability are primary considerations.	When flow rate, low resistance, and flexibility are primary considerations.
