Extruder Screen

Jun. 17, 2025

In the extrusion industry, exruder screens are key components used to remove impurities (such as unmelted particles, carbides, metal debris, etc.) in molten plastics or rubber, protect equipment and improve product quality. Different types of extruder screens have their own advantages and disadvantages due to their different structures, filtration efficiencies and applicable scenarios. The following is an analysis of the characteristics and usage scenarios of common filter types:

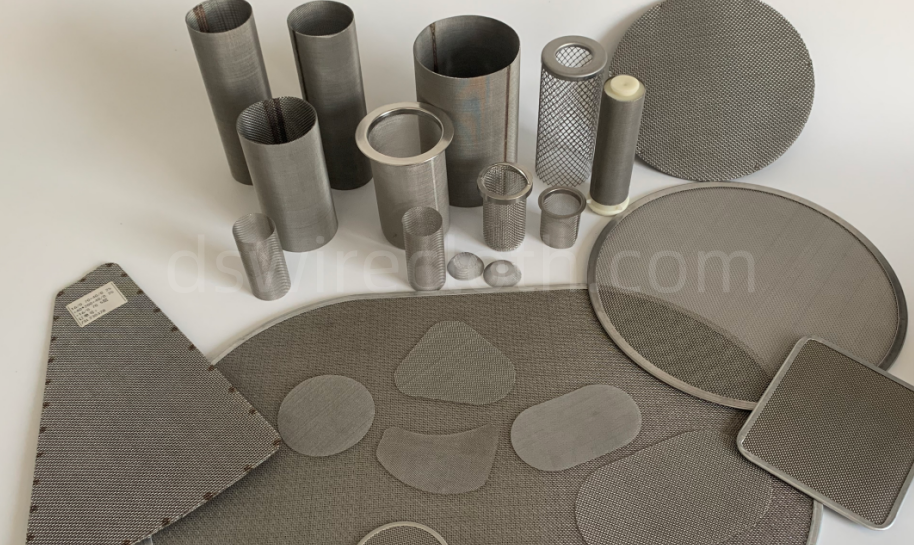

Extruder Screen

1. Round Extruder ScreensFeatures:- Round in shape, usually composed of multiple layers of metal mesh with different mesh sizes (such as a combination of 20 mesh coarse mesh + 40 mesh fine mesh).- Simple structure, easy installation and low cost.Usage scenarios:- Suitable for raw materials with low impurity content or ordinary extrusion processes with low requirements for filtration accuracy.- Commonly used in the production of conventional products such as PVC pipes and profiles.Advantages:- Low cost, easy to replace, and suitable for most standard extruder filter plates.Disadvantages:- Small filtration area, easy to clog, and requires frequent replacement; multi-layer stacking may increase melt resistance.


2. Oval Extruder ScreensFeatures:- Oval design, larger area than circular filter, can accommodate more impurities.- Usually adopts single-layer or multi-layer metal mesh composite structure.Application scenarios:- Suitable for raw materials with medium to high impurity content (such as recycled or reclaimed materials) or production scenarios that require a longer filtration cycle.- Commonly used in the processing of products such as films and sheets that are sensitive to impurities.Advantages:- Increase the effective filtration area and extend the replacement cycle; reduce melt pressure fluctuations.Disadvantages:- Installation requires a special screen plate, which has low compatibility; the initial cost is higher than the circular filter.


3. Cylindrical Screen FilterFeatures:- Cylindrical shape, because the filter medium wraps the entire device, it can provide a huge filtering surface area, and the amount of filtered material is 4 times that of ordinary circular filter screens.- Deep filtration is achieved by increasing the surface area.Application scenarios:- High-precision filtration requirements (such as medical catheters, optical-grade plastics) or high-viscosity melts (such as TPU, PC).- Suitable for high-pressure extruders or twin-screw extrusion systems.Advantages:- High filtration accuracy (up to 5-10 microns), high pressure resistance, and long service life.Disadvantages:- Complex structure, difficult to clean; high initial investment and maintenance costs.


4. Multi-layer Cylindrical FilterFeatures:- It is composed of multiple concentric cylindrical filter screens nested, and the mesh size of each layer increases step by step (such as outer layer coarse filtration, inner layer fine filtration).- Combined with graded filtration and deep filtration, impurities are more evenly distributed.Application scenarios:- Raw materials with high impurity content (such as recycled plastics) or complex processes requiring multi-stage filtration.- Suitable for the production of high-strength products such as cable sheaths and automotive accessories.Advantages:- Strong anti-clogging ability, extended continuous operation time; strong adaptability.Disadvantages:- Large volume, customized design required; time-consuming replacement and cleaning.


5. Screen Belt/Continuous Filter BeltFeatures:- Belt-shaped metal mesh, continuously moved by hydraulic or mechanical drive to achieve dynamic filtration.- Combined with an automatic scraper system to remove surface impurities without stopping for replacement.Application scenarios:- Ultra-high-yield continuous production lines (such as large-scale film blowing machines, sheet extrusion lines).- Processing of highly polluted raw materials (such as recycled agricultural films, masterbatches containing a large amount of fillers).Advantages:- No need to stop for screen replacement, extremely high production efficiency; suitable for high impurity loads.Disadvantages:- Complex equipment, huge initial investment; high maintenance technology requirements.


Comprehensive comparison and selection recommendations


Type

Filtration accuracy

Anti-clogging

Cost

Applicable scenarios

 Round filter

 Low-medium

Low

Low

Ordinary products, low-impurity raw materials

Oval filter

Medium

 Medium

Medium

Recycled material processing, medium output

Cylindrical filter barrel

 High

High

 High

High precision, high viscosity melt

Multi-layer cylindrical filter

Medium-high

High

High

High impurity raw materials, multi-stage filtration requirements

 Filter belt

Medium

Very high

Very high

Ultra-high production line, continuous production cannot be interrupted



Now, as the application of filter screens is becoming more and more uniform around the world, their sizes and specifications will also tend to be unified. Dashang Wire Mesh can customize the appropriate filter type according to the actual needs of customers, significantly improving production efficiency and product quality, while reducing energy consumption and scrap rate.
