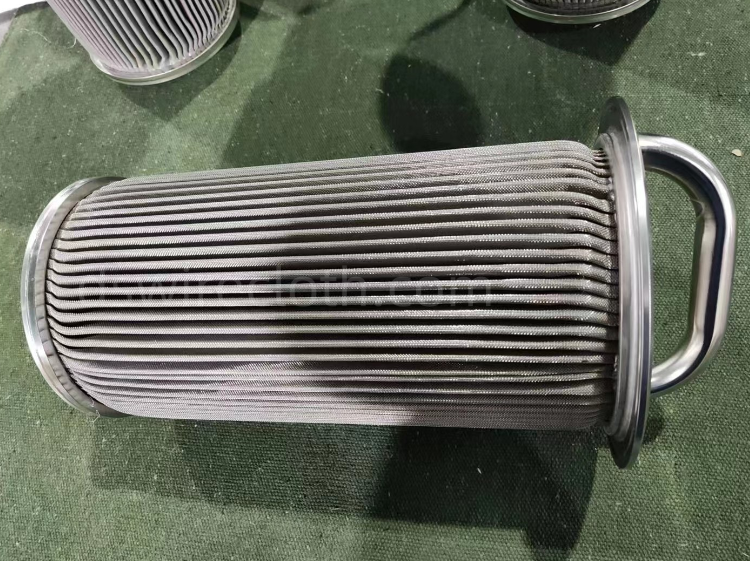

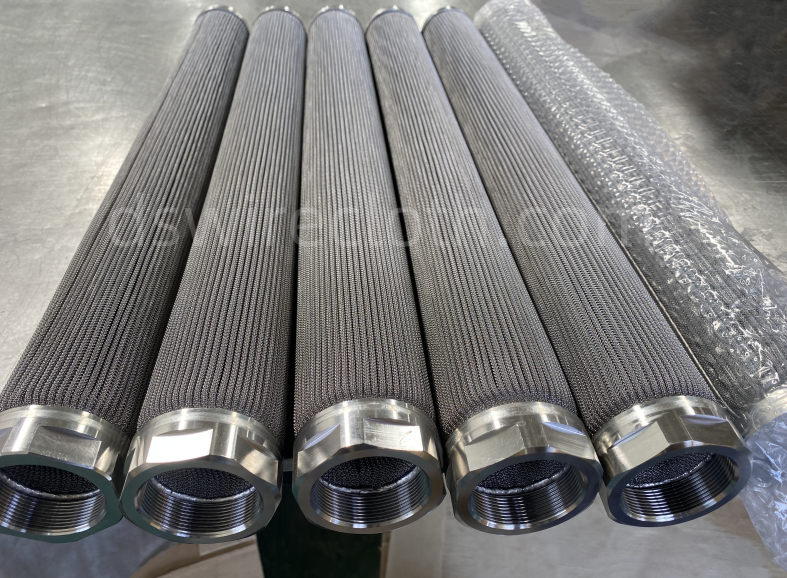

Stainless Steel Pleated Filter Element

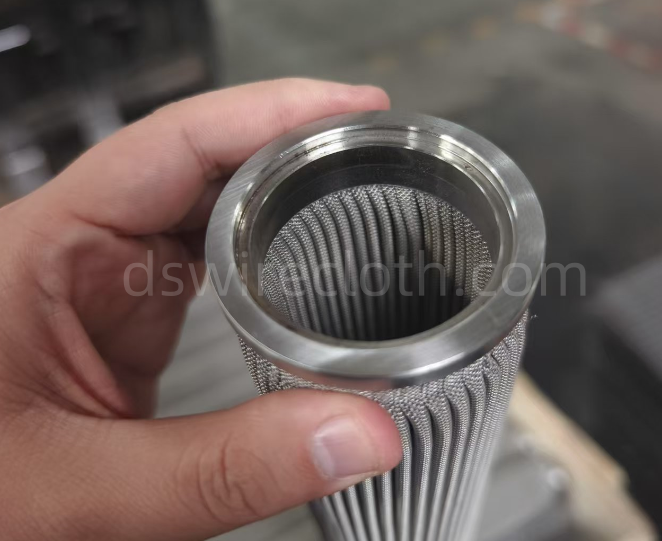

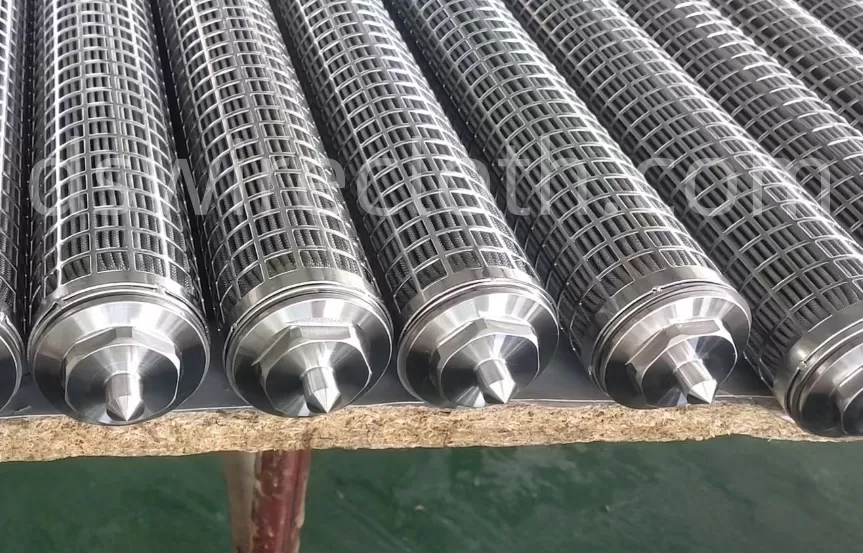

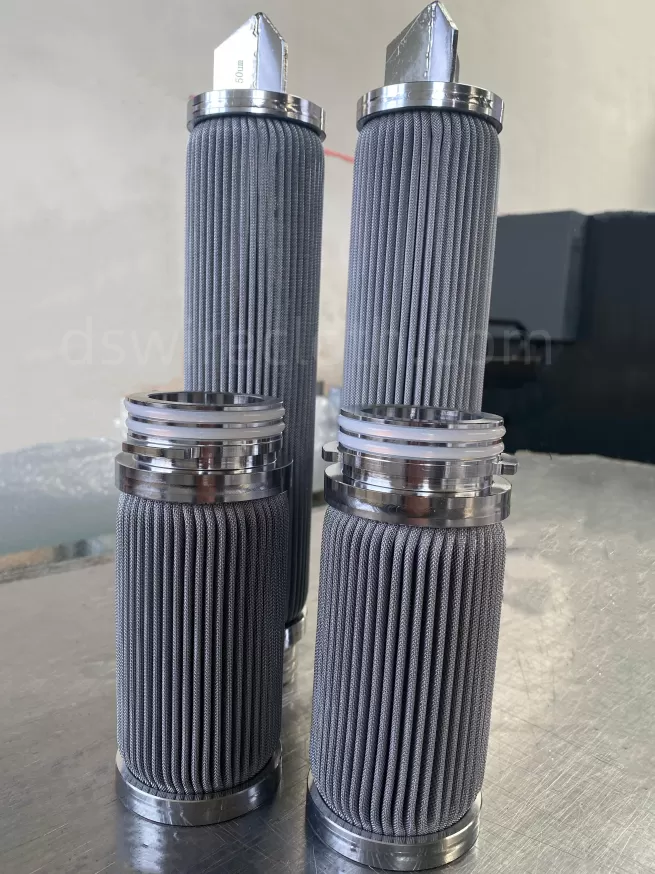

Stainless steel pleated filter elements are mainly made of stainless steel woven mesh and stainless steel fiber sintered felt. The metal woven mesh or stainless steel fiber felt is folded into a corrugated shape. The sealing surfaces of the filter element are welded by argon arc welding, and the straight seam is welded by plasma automatic welding technology. The light transmission test is performed before the processing of each layer of filter mesh to ensure the performance of the basic material.

Dashang wire mesh filter element products can be manufactured with different mesh layers, filtration ratings, outer diameters, lengths, end caps, connection types and sealing structures. The sealing surfaces can be welded to improve strength and prevent leakage during filtration.

Common materials include stainless steel 304, 304L, 316 and 316L. These materials provide corrosion resistance, high temperature resistance, mechanical strength and stable performance in harsh working environments.

Why Choose a Pleated Filter Element?

A Pleated Filter Element is suitable for applications where filtration efficiency, flow rate and service life are important. Because the filter media is folded into pleats, the available filtration surface is much larger than a flat or simple cylindrical filter structure.

This design brings several practical advantages:

Larger filtration area in limited installation space
Higher dirt-holding capacity for longer operating cycles
Lower pressure drop compared with some compact filter structures
Reusable and cleanable stainless steel filter media
Good resistance to high temperature and corrosive media
Stable structure under pressure and repeated operation
Suitable for liquid, gas, oil and chemical filtration

For many industrial buyers, a stainless steel metal filter element can reduce replacement frequency and lower long-term filtration cost.

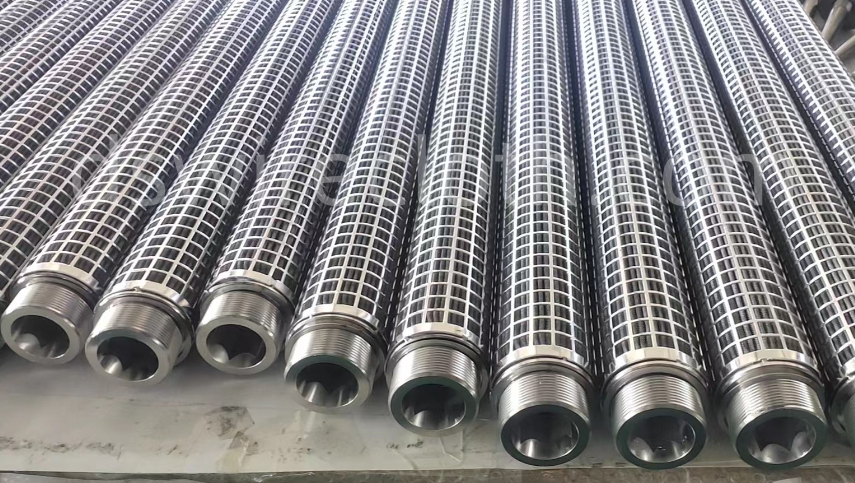

Stainless Steel Filter Element for Harsh Working Conditions

Dashang stainless steel filter element products are widely used in filtration systems that require strength, corrosion resistance and stable precision. Compared with disposable filter materials, stainless steel mesh and sintered metal media can be cleaned and reused many times.

The metal filter element is suitable for high-pressure filtration, high-temperature filtration, corrosive medium filtration and applications where fiber shedding must be avoided. Its strong welded structure and metal filter media help maintain reliable filtration performance during continuous industrial operation.

Compared with ordinary cylindrical filter elements, what are the advantages of pleated technology?

1. The pleated structure increases the filtration area: The pleated design significantly increases the contact area of the filter medium, which can capture more particles and impurities, while reducing the resistance of liquid or gas passing through the filter element, and improving the filtration efficiency.

2. Physical interception: The filter element uses materials such as metal mesh or sintered metal fiber to form a multi-layer filtration structure with micropores. When the fluid passes through the filter element, impurities and particles are intercepted by these micropores, while smaller molecules and liquids flow out through the micropores.

3. Deep filtration: It is usually made of multiple layers of materials and has a certain depth filtration function. As the fluid flows through the filter element, impurities will gradually deposit in different layers of the filter element, achieving a more effective filtration effect.

As a filter material, stainless steel pleated filter element also has incomparable advantages:

1. High filtration accuracy: It can effectively intercept various tiny particles, and the filtration accuracy can reach the micron level or even higher, ensuring that the filtered liquid or gas reaches a high purity.

2. High strength: The stainless steel material gives it high mechanical strength, and it is not easy to deform in a high-pressure working environment, and can withstand high pressure.

3. Good stability: It has good chemical stability and thermal stability, can maintain stable performance in different temperatures and chemical environments, and is not easy to react chemically with the medium.

4. Easy to clean: The surface is smooth, impurities are not easy to adhere, and can be cleaned in a variety of ways, such as backwashing, ultrasonic cleaning, etc., and can be reused after cleaning to reduce the cost of use.

5. Long life: Due to its high strength, corrosion resistance and reusability, the service life of stainless steel pleated filter elements is longer than that of some other materials.

6. Good sealing: Using advanced welding technology, the filter element has good sealing performance, which can effectively prevent medium leakage and ensure the filtration effect.

7. Environmental protection and energy saving: It can be recycled and reused, which meets environmental protection requirements. At the same time, its efficient filtering performance helps to reduce energy loss.

Applications of Pleated Filter Elements

Stainless steel pleated filter elements are widely used in many industries. The following are some of the main industries:

1. Food and beverage industry: used for filtering liquids such as juice, milk, beer, etc., removing impurities, sediments and microorganisms, and ensuring the quality and taste of the products.

2. Fine chemical industry: used to filter impurities and colloidal particles in the production process of chemical raw materials, coatings, inks, etc., to improve the purity and stability of products.

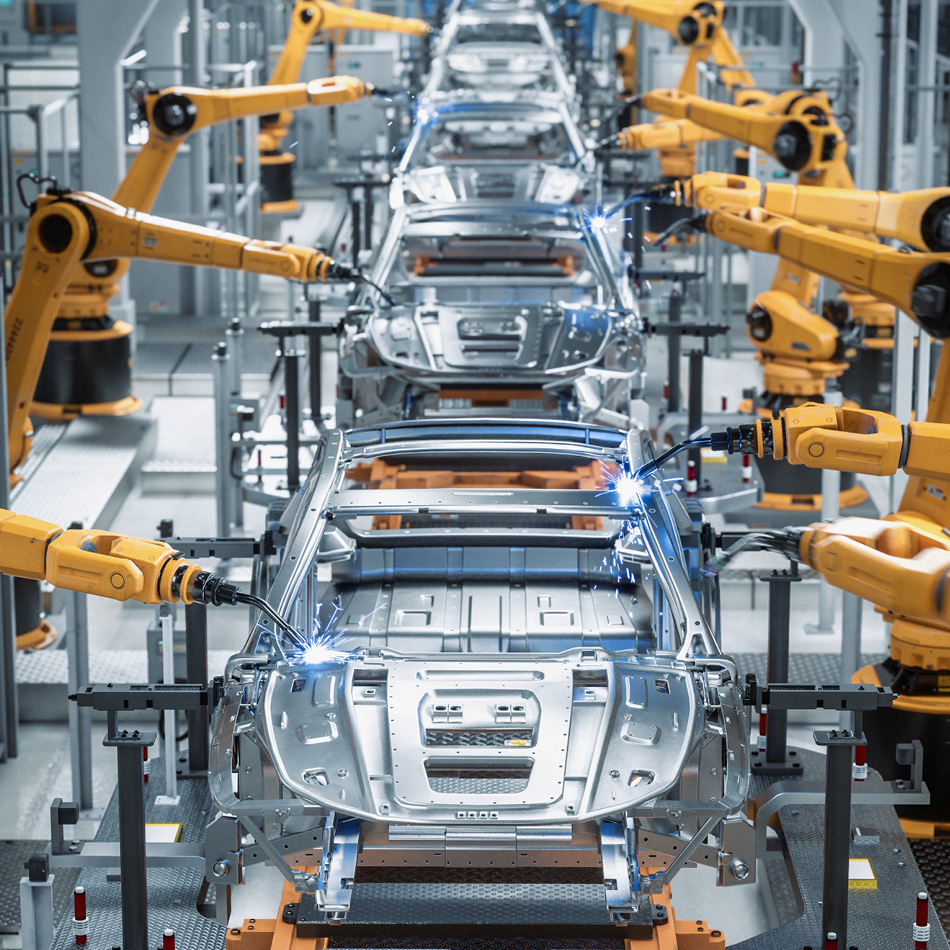

3. Automobile manufacturing industry: used for lubricating oil filtration, fuel filtration and air filtration systems of automobile engines to protect engine components and extend engine service life.

4. Aerospace industry: in the fuel system, hydraulic system and air circulation system of aircraft engines, high-precision filtration of oil and gas is performed to ensure the reliable operation of the system.

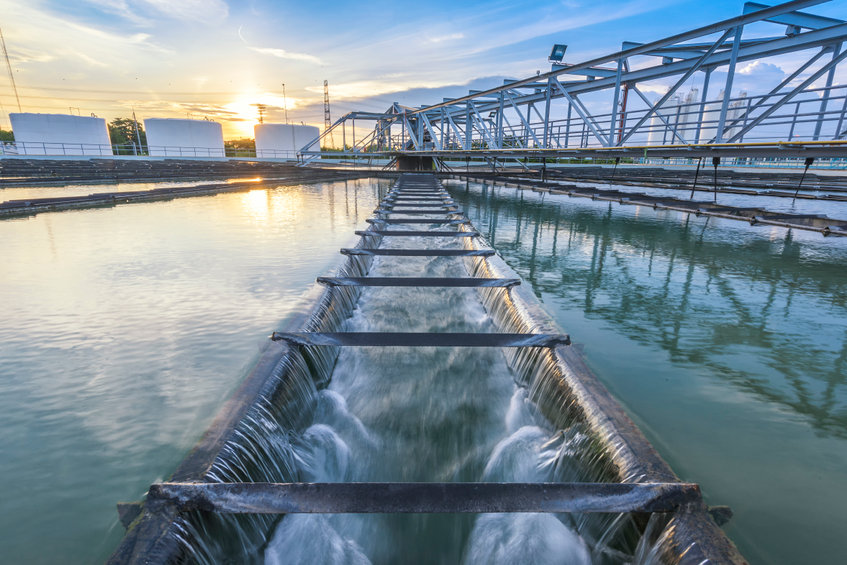

5. Seawater desalination industry: as an important component of the pretreatment link, it is used to filter suspended matter, sand and other impurities in seawater to provide clean water for subsequent desalination treatment.

6. Power industry: in thermal power generation, hydropower generation and nuclear power generation, it is used for filtering turbine lubricating oil, fire-resistant oil and generator cooling system to ensure the safe and stable operation of equipment.

7. Metallurgical industry: In the process of metal smelting, it is used to filter impurities and inclusions in the molten metal to improve the quality of metal products. In addition, in the steel rolling process, filtering emulsions and lubricating oils helps to improve the surface quality of rolled products.

Quality Control and Testing

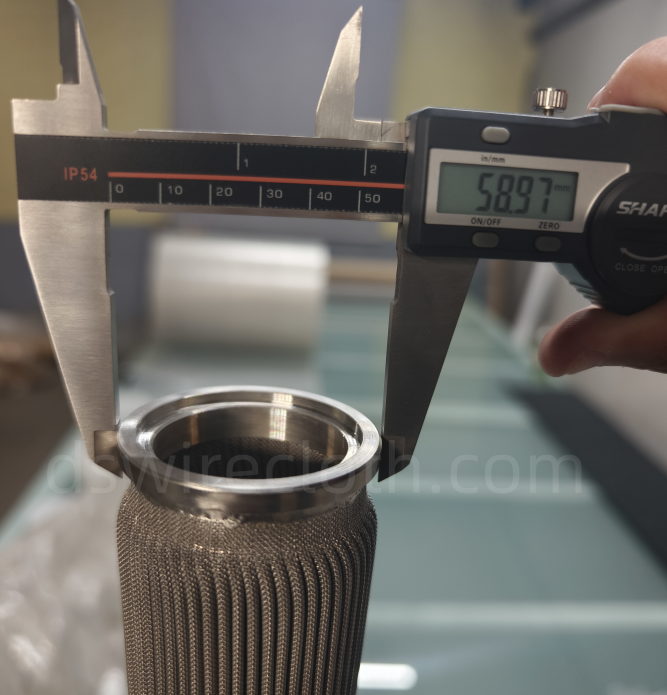

To ensure stable filtration performance, Dashang focuses on raw material selection, mesh inspection, welding quality, dimensional accuracy and sealing performance. According to customer requirements, we can provide inspection support such as material reports, size inspection records, bubble point testing and other quality documents.

Reliable quality control helps each wire mesh filter element maintain consistent performance in industrial filtration systems.

As an expert in industrial filtration and screening solutions, Dashang Wire Mesh can customize and produce pleated filter elements according to customer requirements, provide customers with improvement solutions, and increase the service life of filter elements. Each filter element product is provided with test reports as required, including bubble detection test report, filter element size test record report, material chemical composition test report, etc. If you have any questions about stainless steel pleated filter elements, please feel free to contact us at sales@dswirecloth.com

FAQ-Pleated Filter Element

What is a Pleated Filter Element?

A Pleated Filter Element is a filter component made by folding the filter media into pleats. This structure increases the filtration area, improves dirt-holding capacity and helps extend the service life of the filter element.

What materials are used for stainless steel filter elements?

Common materials include stainless steel 304, 304L, 316 and 316L. Stainless steel woven wire mesh and stainless steel fiber felt are commonly used for pleated filter elements.

What is the advantage of a metal filter element?

A metal filter element offers high strength, corrosion resistance, high temperature resistance and reusability. It is suitable for industrial filtration systems where disposable filter media may not be durable enough.

Can a wire mesh filter element be cleaned and reused?

Yes. Stainless steel wire mesh filter elements can usually be cleaned by backwashing, ultrasonic cleaning or chemical cleaning, depending on the medium and contamination type.

Can Dashang customize Pleated Filter Elements?

Yes. Dashang can customize Pleated Filter Elements according to drawings, samples or technical requirements, including material, filtration rating, size, end cap type, connection structure and sealing method.
